5307-00-145-1833

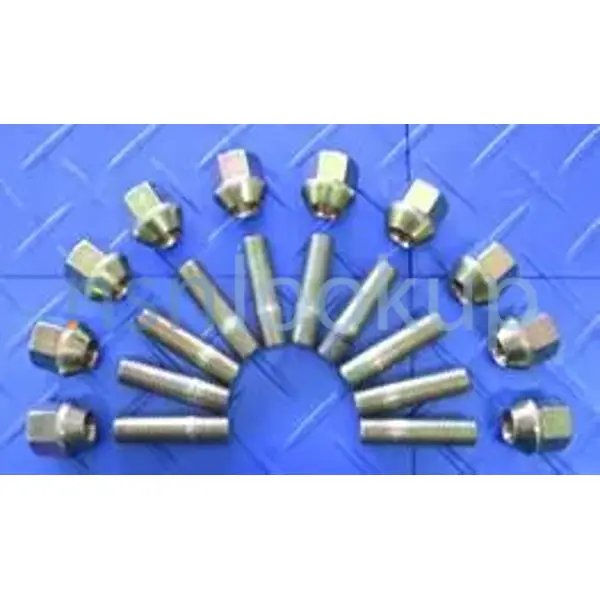

Plain Stud
5307001451833 001451833 42418P8
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD. View more Plain Stud
May 2023
9
Marketplace 5307-00-145-1833
Request a Quotation from participating marketplace vendors
Related Documents 5307-00-145-1833 5+ Documents (More...)
United States (US) 4. 5307-00-145-1833 Marketplace Restrictions Approved Sources Datasheet Management
5307-00-145-1833 RQST Updated Every Day 5307-00-145-1833 RQST NE Related Documents 5307-00-145-1833 1
Restrictions 5307-00-145-1833
5307-00-145-1833 is a Plain Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5307-00-145-1833
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5307-00-145-1833
- Part Number
- Manufacturer
- Status
- 42418P8
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
- 42418P8
- 00198 - Pratt & Whitney Canada Corp (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5307-00-145-1833
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Material [MATT]
- Steel Comp 8735
- Material Document And Classification [MDCL]
- Ams 6320 Assn Std Single Material Response
- Surface Treatment [SFTT]
- Cadmium Overall
- Overall Length [ABHP]
- 2.563 Inches Nominal
- Thread Series Designator [THSD]
- Unf Nut Thread
- Thread Series Designator [THSD]
- Unc Stud Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Stud Thread
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
- Thread Quantity Per Inch [CMLP]
- 16 Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.625 Inches Minimum Nut Thread
- Thread Length [AASA]
- 1.000 Inches Minimum Stud Thread
- Special Features [FEAT]
- Thd On Stud End 0.008 In. Oversize
Similar Supply Items to 5307-00-145-1833
Freight Information 5307-00-145-1833
5307-00-145-1833 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-00-145-1833 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5307-00-145-1833 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-00-145-1833 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5307-00-145-1833 is not classified as a special type of cargo when transported by water. 5307-00-145-1833 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
