5307-00-131-3380

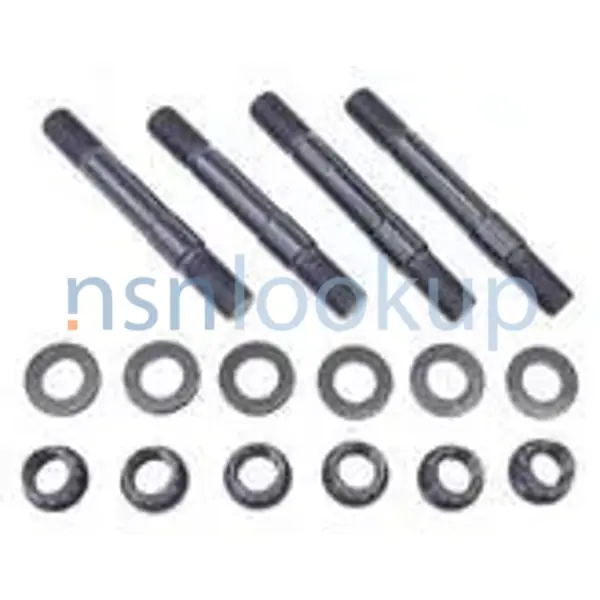

Shouldered Stud
5307001313380 001313380 6865664-4 BLT8037
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN. View more Shouldered Stud
May 2023
3
Marketplace 5307-00-131-3380
Request a Quotation from participating marketplace vendors
Related Documents 5307-00-131-3380 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5307-00-131-3380 RQST NE Updated Every Day 5307-00-131-3380 RQST
Updated Every Day 5307-00-131-3380 RQST NE Related Documents 5307-00-131-3380 2+ Documents ( More...
SSK/Y/553/60/0625/104 SHEET 001 SSK/Y/553/60/0625/104/001 001313380 SHEET 001 001313380/001 SSK/Y/553
Shouldered Stud 5307001313380 001313380 - Upgrade for $1 a day Upgrade your Account Upgrade 5307
Restrictions 5307-00-131-3380
5307-00-131-3380 is a Shouldered Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5307-00-131-3380
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 5307-00-131-3380
- Part Number
- Manufacturer
- Status
- 6865664-4
- Manufacturer
- 73342 - Allison Transmission Inc (Active)
- Primary Buy
- Primary Buy
- 6865664-4
- K0680 - Rolls-Royce Airlines (Active)
- Secondary Buy
- Secondary Buy
- BLT8037
- K0680 - Rolls-Royce Airlines (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5307-00-131-3380
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Distance Across Flats [AWTQ]
- 0.503 Inches Nominal
- Features Provided [CBBL]
- Casehardened
- Material [MATT]
- Steel
- Nominal Thread Size [CQJX]
- 0.312 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.312 Inches Stud Thread
- Nut End Shank Diameter [CTDT]
- 0.248 Inches Nominal
- Nut End Shank Length [ADDB]
- 0.100 Inches Minimum And 0.115 Inches Maximum
- Material Document And Classification [MDCL]
- Ems64500 Detroit Diesel Allison Mfr Ref Single Material Response
- Shoulder Diameter [AAVH]
- 0.667 Inches Minimum And 0.677 Inches Maximum
- Shoulder Length [AAVK]
- 0.190 Inches Minimum And 0.200 Inches Maximum
- Overall Length [ABHP]
- 1.745 Inches Minimum And 1.780 Inches Maximum
- Special Features [FEAT]
- Rate Of Reduction In Shank End Shank Dia 0.0208 In. Min 0.0209 In. Max Per In. Of Shank Length,Shank Tapered From Shoulder
- Stud End Shank Diameter [CSXH]
- 0.355 Inches Nominal
- Style Designator [STYL]
- Shouldered
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.417 Inches Nominal Nut Thread
- Thread Length [AASA]
- 0.338 Inches Nominal Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
- Thread Quantity Per Inch [CMLP]
- 24 Stud Thread
- Thread Series Designator [THSD]
- Unf Stud Thread
- Thread Series Designator [THSD]
- Unjf Nut Thread
