5306-01-550-6616

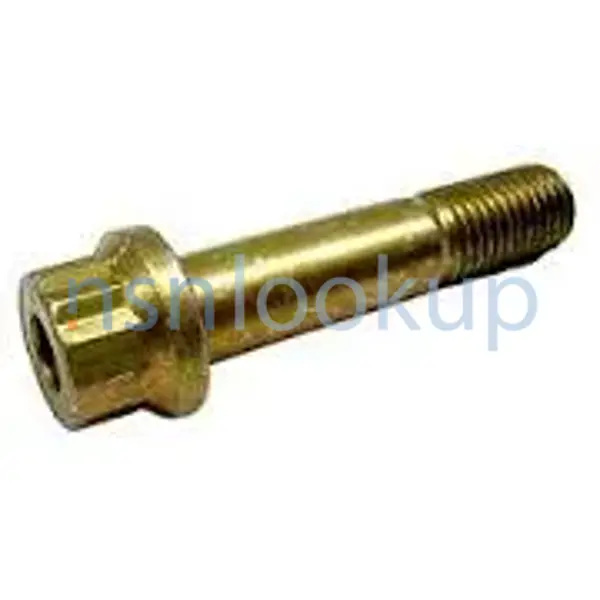

Shear Bolt
5306015506616 015506616 MS21250-03028
A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS. View more Shear Bolt
November 2023
1
Marketplace 5306-01-550-6616
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-550-6616 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5306-01-550-6616 RQST NE Updated Every Day 5306-01-550-6616 RQST
Updated Every Day 5306-01-550-6616 RQST NE Related Documents 5306-01-550-6616 1+ Documents ( More...
Restrictions 5306-01-550-6616
5306-01-550-6616 is a Shear Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-550-6616
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-550-6616
- US Army (A919)
- Effective Date:
- 1 Apr 2007
- Supplementary Receivers:
- CT
Approved Sources 5306-01-550-6616
- Part Number
- Manufacturer
- Status
- MS21250-03028
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5306-01-550-6616
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- 1520-01-471-6743, Helicopter, Search And Rescue
- Extended Washer Thickness [AATD]
- 0.055 Inches Nominal
- Fastener Length [AASB]
- 2.065 Inches Nominal
- Grip Length [ANEE]
- 1.625 Inches Nominal
- Head Height [AASU]
- 0.265 Inches Nominal
- Head Style [AASK]
- Double Hexagon W/Hole
- Material Document And Classification [MDCL]
- Mil-S-5626 Mil Spec 1St Material Response Overall Or Mil-S-5000 Mil Spec 2Nd Material Response Overall Or Mil-S-6049 Mil Spec 3Rd Material Response Overall Or Mil-S-8503 Mil Spec 4Th Material Response Overall
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp 4340 Overall Or Steel Comp 8740 Overall Or Steel Comp 6150 Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 32
- Width Between Flats [AATB]
- 0.250 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Ty Ii, Cl 2 Fed Spec Fed Spec Single Treatment Response Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.420 Inches Nominal
Weapon Systems (WSDC) 5306-01-550-6616
DLA Procurement Analysis 5306-01-550-6616
- Last Stock Position:
- 426 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-01-550-6616
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5306-01-550-6616
Freight Information 5306-01-550-6616
5306-01-550-6616 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-550-6616 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-550-6616 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-01-550-6616 is not classified as a special type of cargo when transported by water. 5306-01-550-6616 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-01-550-6616
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
