5306-01-546-1441

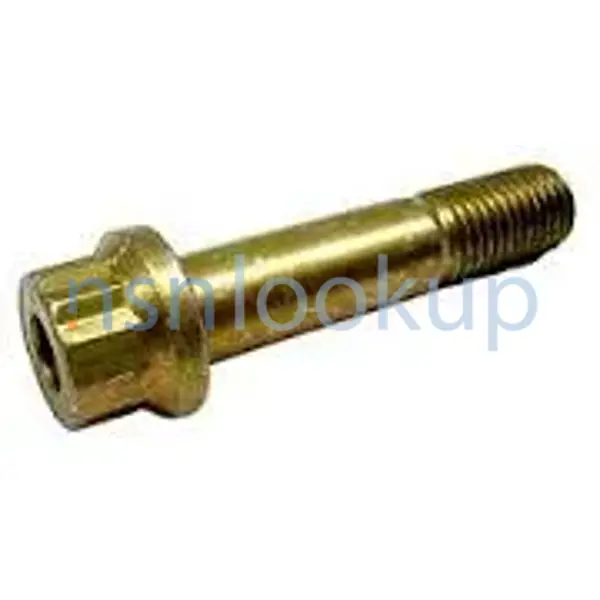

Shear Bolt
5306015461441 015461441 MS21250-02010
A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS. View more Shear Bolt
November 2023
3
Marketplace 5306-01-546-1441
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-546-1441 4+ Documents (More...)
Updated Every Day 5306-01-546-1441 RQST NE Related Documents 5306-01-546-1441 1+ Documents ( More...
1/2 NSN 5306-01-546-1441 (Identification) 2/2 - - 1.
Restrictions 5306-01-546-1441
5306-01-546-1441 is a Shear Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-546-1441
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-546-1441
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2006
- Supplementary Collaborators:
- GTKE
Approved Sources 5306-01-546-1441
- Part Number
- Manufacturer
- Status
- MS21250-02010
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS21250-02010
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-01-546-1441
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Extended Washer Diameter [AATC]
- 0.290 Inches Minimum And 0.300 Inches Maximum
- Extended Washer Thickness [AATD]
- 0.062 Inches Nominal
- Fastener Length [AASB]
- 1.030 Inches Nominal
- Grip Diameter [AAUR]
- 0.162 Inches Minimum And 0.163 Inches Maximum
- Grip Length [ANEE]
- 0.615 Inches Minimum And 0.635 Inches Maximum
- Head Height [AASU]
- 0.250 Inches Nominal
- Head Style [AASK]
- Double Hexagon W/Hole
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp E4340 Overall Or Steel Comp 6150 Overall Or Steel Comp 8740 Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.164 Inches
- Special Features [FEAT]
- Item Has Undrilled Head
- Thread Series Designator [THSD]
- Unjc
- Thread Quantity Per Inch [CMLP]
- 32
- Width Between Flats [AATB]
- 0.204 Inches Minimum And 0.219 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.405 Inches Nominal
Weapon Systems (WSDC) 5306-01-546-1441
DLA Procurement Analysis 5306-01-546-1441
- Last Stock Position:
- 1120 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-01-546-1441
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5306-01-546-1441
Freight Information 5306-01-546-1441
5306-01-546-1441 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-546-1441 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-546-1441 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-01-546-1441 is not classified as a special type of cargo when transported by water. 5306-01-546-1441 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-01-546-1441
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
