5306-01-502-7349
Hook Bolt
5306015027349 015027349 12422779
An externally threaded device whose threaded portion is of nominal diameter, without a head but with the unthreaded end bent not over 225 degrees (3.925 radians). See also BOLT, EYE and BOLT, U. View more Hook Bolt
November 2023
4
Marketplace 5306-01-502-7349
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-502-7349 1+ Documents (More...)
Updated Every Day 5306-01-502-7349 RQST NE Related Documents 5306-01-502-7349 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-502-7349 Hook Bolt 5306015027349 015027349,12422779
Restrictions 5306-01-502-7349
5306-01-502-7349 is a Hook Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-502-7349
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-502-7349
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
Approved Sources 5306-01-502-7349
- Part Number
- Manufacturer
- Status
- 12422779
- Manufacturer
- 6Y603 - Fabory Usa Ltd. (Active)
- Primary Buy
- Primary Buy
- 12422779
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 12422779
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12422779
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12422779
- 19207 - U S Army Tank Automotive Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5306-01-502-7349
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- 2320-01-355-4332
- Hook Opening Width [AAUF]
- 0.346 Inches Minimum And 0.466 Inches Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Shank Length [AATR]
- 1.130 Inches Minimum And 1.370 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 24

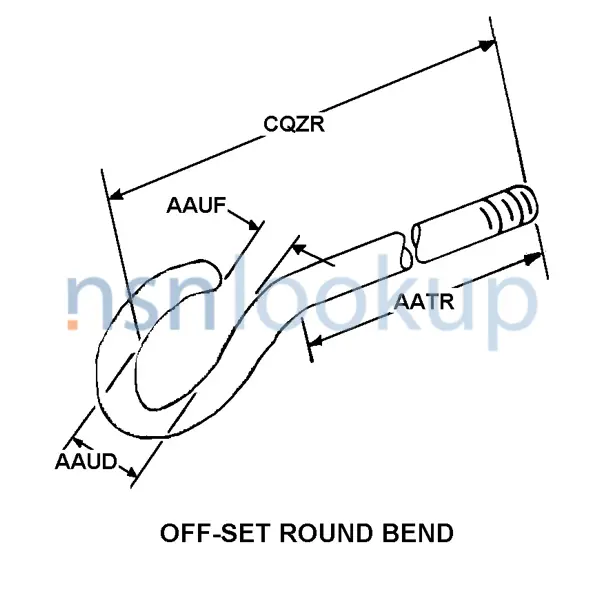

- Style Designator [STYL]
- Off-Set Round Bend
- Surface Treatment [SFTT]
- Zinc Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.130 Inches Minimum And 1.370 Inches Maximum
Weapon Systems (WSDC) 5306-01-502-7349
DLA Procurement Analysis 5306-01-502-7349
- Last Stock Position:
- 854 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-01-502-7349
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5306-01-502-7349
Freight Information 5306-01-502-7349
5306-01-502-7349 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-502-7349 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-502-7349 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 574 for ocean manifesting and military sealift. 5306-01-502-7349 is not classified as a special type of cargo when transported by water. 5306-01-502-7349 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-01-502-7349
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-01-502-7349 1 Records
Contracting Technical Data File (CTDF) 5306-01-502-7349 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
