5306-01-492-5708

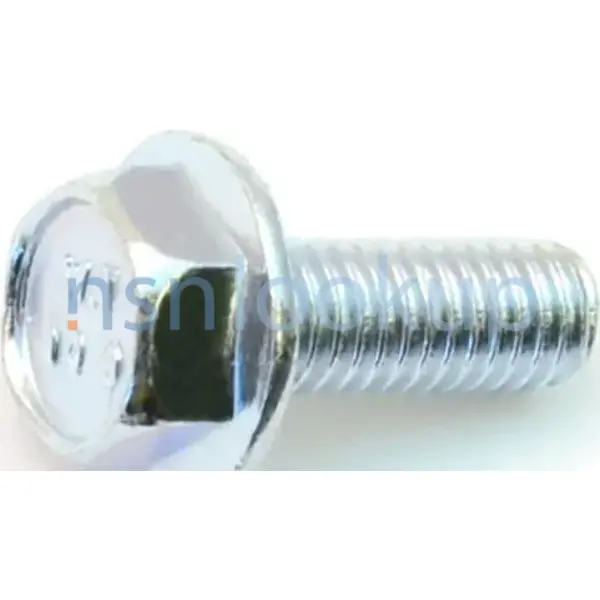

Machine Bolt
5306014925708 014925708 12414307-013 12414307
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
November 2023
9
Marketplace 5306-01-492-5708
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-492-5708 5+ Documents (More...)
-013 75Q65 - Oshkosh Defense Llc (Active) Secondary Buy RNCC 5 RNVC 2 DAC 5 12414307-013 0FW39 - Bae
-013 75Q65 - Oshkosh Defense Llc (Active) Secondary Buy RNCC 5 RNVC 2 DAC 5 12414307-013 0FW39 - Bae
-040 EN1665-M8X1.25X40-10.9A2D DIN6921M8X1.25X40-10.9A2D 12414307 An externally threaded fastener designed
Machine Bolt 5306014925708 014925708 : 2 | DAC: 5 4 Dec 2001 5306-01-453-9133 Machine Bolt 12414307
Machine Bolt 12414307-013RNCC: 5 | RNVC: 2 | DAC: 5 4 Dec 2001 5306-01-453-9133 Machine Bolt 12414307
-040RNCC: 3 | RNVC: 2 | MEDALS: Y | DAC: A 13 Mar 1998 5306-01-330-8490 Machine Bolt 12414307-037RNCC
5305016514417 Account Upgrade 5305-01-651-4417Hexagon Head Cap Screw5305016514417 016514417 3836193008 12414307
Screw 5305016517301 Account Upgrade 5305-01-651-7301Hexagon Head Cap Screw5305016517301 016517301 12414307
An externally threaded fastener designed for insertion through holes in assembled parts -012 12414307
An externally threaded fastener designed for insertion through holes in assembled parts -012 12414307
Restrictions 5306-01-492-5708
5306-01-492-5708 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-492-5708
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-492-5708
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
Approved Sources 5306-01-492-5708
- Part Number
- Manufacturer
- Status
- 12414307-013
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12414307-013
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 12414307-013
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- 12414307-013
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 12414307-013
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12414307
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5306-01-492-5708
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- 2320-01-447-6345 And 2320-01-447-3899
- Extended Washer Thickness [AATD]
- 1.1 Millimeters Nominal
- Extended Washer Diameter [AATC]
- 13.6 Millimeters Nominal
- External Thread Tolerance Class [CQWR]
- 6G
- Fastener Length [AASB]
- 20.0 Millimeters Nominal
- Head Height [AASU]
- 6.8 Millimeters Nominal
- Head Style [AASK]
- Hexagon Extended Washer
- Material [MATT]
- Steel Property Class 10.9 Overall
- Nominal Thread Diameter [AHYM]
- 6.0 Millimeters
- Special Features [FEAT]
- Bolt Is Flanged
- Thread Series Designator [THSD]
- M
- Thread Pitch In Millimeters [CQQR]
- 1.0
- Width Between Flats [AATB]
- 7.64 Millimeters Minimum And 8.00 Millimeters Maximum
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 18.0 Millimeters Nominal
