5306-01-453-9133

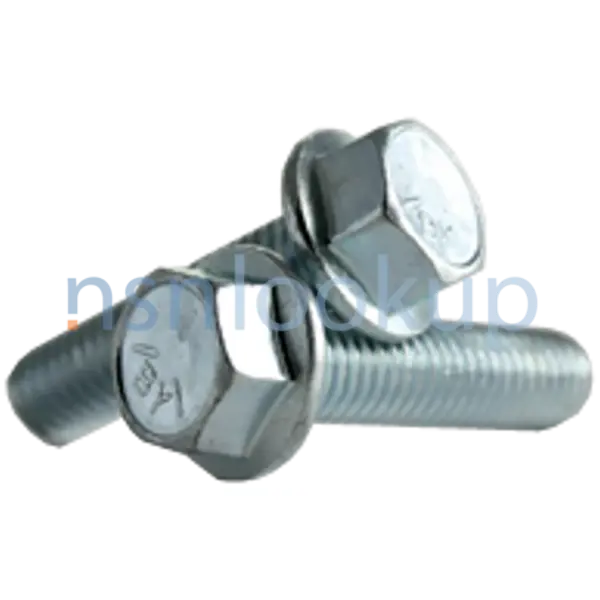

Machine Bolt
5306014539133 014539133 12414307-040 EN1665-M8X1.25X40-10.9A2D DIN6921M8X1.25X40-10.9A2D 12414307
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
November 2023
5
Marketplace 5306-01-453-9133
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-453-9133 5+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 12414307
-040 BOLT 4 EA NS Request Quotation Updated Every Day 5306-01-453-9133 RQST NE Updated Every Day 5306
Machine Bolt 5306014539133 014539133, Upgrade your Account Upgrade 5306-01-453-9133Machine Bolt5306014539133
014539133 12414307-040 EN1665-M8X1.25X40 3 | RNVC: /fsg-53/fsc-5306/us 5306-01-453-9133 Machine Bolt
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-453-9133 Machine Bolt 5306014539133 014539133,
12414307 -040 EN1665-M8X1.25X40-10.9A2D DIN6921M8X1.25X40-10.9A2D 12414307 An externally threaded fastener
Machine Bolt 5306014539133 014539133, for $1 a day Upgrade your Account Upgrade 5306-01-453-9133Machine
Bolt5306014539133 014539133 12414307-040 a Quotation from participating marketplace vendors Request
-093 12414307 An externally threaded fastener designed for insertion through holes in assembled parts
Machine Bolt 5306014539133 014539133, -013RNCC: 5 | RNVC: 2 | DAC: 5 4 Dec 2001 5306-01-453-9133
Restrictions 5306-01-453-9133
5306-01-453-9133 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-453-9133
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-453-9133
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Oct 2012
Approved Sources 5306-01-453-9133
- Part Number
- Manufacturer
- Status
- 12414307-040
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- EN1665-M8X1.25X40-10.9A2D
- I9008 - International Organization For (Active)
- Primary Buy
- Primary Buy
- DIN6921M8X1.25X40-10.9A2D
- D8286 - Din Deutsches Institut Fur Normung (Active)
- Secondary Buy
- Secondary Buy
- 12414307
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5306-01-453-9133
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Extended Washer Thickness [AATD]
- 1.2 Millimeters Minimum
- Extended Washer Diameter [AATC]
- 18.0 Millimeters Nominal
- External Thread Tolerance Class [CQWR]
- 6G
- Fastener Length [AASB]
- 39.5 Millimeters Minimum And 40.5 Millimeters Maximum
- Head Height [AASU]
- 8.1 Millimeters Nominal
- Head Style [AASK]
- Hexagon Extended Washer
- Material [MATT]
- Steel Property Class 10.9 Overall
- Nominal Thread Diameter [AHYM]
- 8.0 Millimeters
- Material Document And Classification [MDCL]
- Din 267/11 National Spec Single Material Response Overall Or Din 6921 National Spec Single Material Response Overall
- Thread Series Designator [THSD]
- M
- Thread Pitch In Millimeters [CQQR]
- 1.25
- Width Between Flats [AATB]
- 13.0 Millimeters Nominal
- Surface Treatment Document And Classification [STDC]
- Din 267 Part 9 National Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 22.0 Millimeters Minimum
