5306-01-422-9306
Shoulder Bolt
5306014229306 014229306 5-400-52 3646258 602768
An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW. View more Shoulder Bolt
November 2023
3
Marketplace 5306-01-422-9306
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-422-9306 5+ Documents (More...)

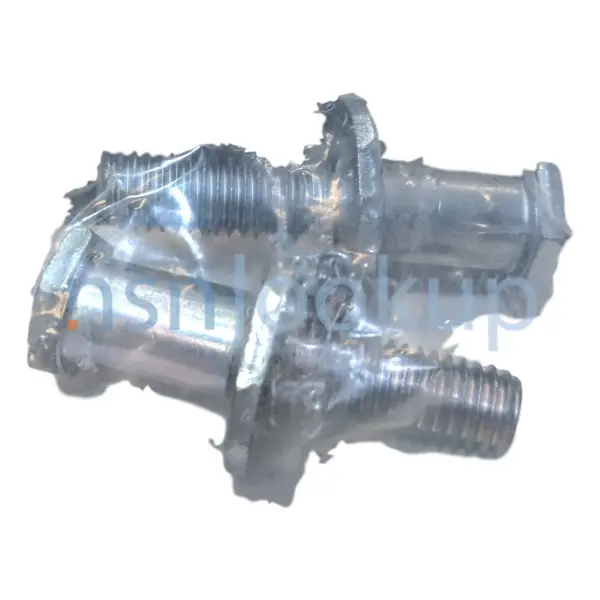

Photo 1/2 NSN 5306-01-422-9306 (Identification) 2/2 - - 1.
United States (US) 4. 5306-01-422-9306 Marketplace Restrictions Approved Sources Datasheet Management
JavaScript in your web browser . 3110-15-143-6507Cuscinetto Rullinip3110151436507 151436507 629A 602768
JavaScript in your web browser . 5998-21-914-4437Circuit Card Assembly5998219144437 219144437 220-602768
JavaScript in your web browser . 5998-21-914-4437Circuit Card Assembly5998219144437 219144437 220-602768
JavaScript in your web browser . 5998-21-914-4437Circuit Card Assembly5998219144437 219144437 220-602768
Restrictions 5306-01-422-9306
5306-01-422-9306 is a Shoulder Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-422-9306
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-422-9306
- US Army (A919)
- Effective Date:
- 1 Apr 2007
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Nov 2007
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
Approved Sources 5306-01-422-9306
- Part Number
- Manufacturer
- Status
- 5-400-52
- Manufacturer
- 19220 - Eastern Co (Active)
- Primary Buy
- Primary Buy
- 3646258
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 3646258
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 602768
- 02978 - Renk America Llc (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5306-01-422-9306
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.030 Inches Nominal
- Head Height [AASU]
- 0.150 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 1045 Overall
- Nominal Thread Diameter [AHYM]
- 0.438 Inches
- Shoulder Diameter [AATN]
- 0.545 Inches Minimum First Shoulder And 0.550 Inches Maximum First Shoulder
- Shoulder Shape [CWYB]
- Round First Shoulder
- Shoulder Length [AATX]
- 0.840 Inches Nominal First Shoulder
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 14
- Width Between Flats [AATB]
- 1.120 Inches Nominal
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.200 Inches Nominal
Weapon Systems (WSDC) 5306-01-422-9306
DLA Procurement Analysis 5306-01-422-9306
- Last Stock Position:
- 188 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-01-422-9306
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5306-01-422-9306
Freight Information 5306-01-422-9306
5306-01-422-9306 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093483. A Sub NMFC of X. It has a NMFC Description of BOLTS,NUTS OR SCREWS,NOI IRON OR. 5306-01-422-9306 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-422-9306 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5306-01-422-9306 is not classified as a special type of cargo when transported by water. 5306-01-422-9306 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-01-422-9306
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-01-422-9306 1 Records
Contracting Technical Data File (CTDF) 5306-01-422-9306 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
