5306-01-353-2740
Internally Relieved Body Bolt
5306013532740 013532740 559-001 ES754-18
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
June 2023
3
Marketplace 5306-01-353-2740
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-353-2740 1+ Documents (More...)
(Identification) 1/2 NSN 5306-01-353-2740 (Identification) 2/2 - - 1.
100 EA NS Request Quotation Updated Every Day 5306-01-353-2740 RQST NE Updated Every Day 5306-01-353-
Restrictions 5306-01-353-2740
5306-01-353-2740 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5306-01-353-2740
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Jun 2008
Approved Sources 5306-01-353-2740
- Part Number
- Manufacturer
- Status
- 559-001
- Manufacturer
- 06324 - Glenair, Inc. (Active)
- Primary Buy
- Primary Buy
- ES754-18
- 98255 - Drs Sustainment Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- ES754-18
- 20418 - Drs Sustainment Systems, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-01-353-2740
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.320 Inches Nominal
- Head Height [AASU]
- 0.060 Inches Minimum And 0.080 Inches Maximum
- Head Style [AASK]
- Hexagon
- Nominal Thread Diameter [AHYM]
- 0.112 Inches
- Nominal Thread Size [CQJX]
- 0.112 Inches Concentric Hole
- Internal Thread Direction [CGMJ]
- Right-Hand Concentric Hole
- Internal Thread Length [ABXT]
- 0.125 Inches Minimum Concentric Hole
- Shoulder Diameter [AAVH]
- 0.145 Inches Minimum And 0.150 Inches Maximum
- Shoulder Length [AAVK]
- 0.110 Inches Minimum And 0.130 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Series Designator [THSD]
- Unc
- Thread Series [BZRR]
- Unc Concentric Hole
- Threads Per Inch [AAEL]
- 2B Concentric Hole
- Width Between Flats [AATB]
- 0.180 Inches Minimum And 0.190 Inches Maximum

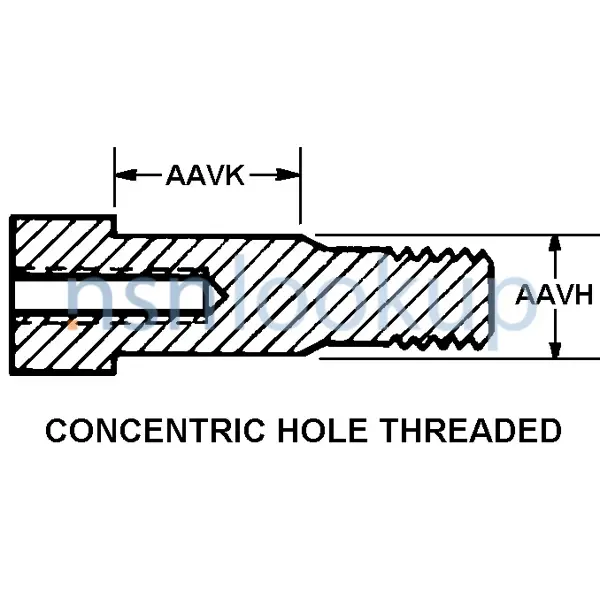

- Style Designator [STYL]
- Concentric Hole Threaded
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.270 Inches Minimum And 0.320 Inches Maximum
DLA Procurement Analysis 5306-01-353-2740
Management Data 5306-01-353-2740
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5306-01-353-2740
Freight Information 5306-01-353-2740
5306-01-353-2740 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-353-2740 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-353-2740 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-01-353-2740 is not classified as a special type of cargo when transported by water. 5306-01-353-2740 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
