Key Head Bolt
5306013416178 013416178 12592669
A headed externally threaded fastener whose threaded portion is of one nominal diameter with a single rectangular or triangular projection on the underside of the head. View more Key Head Bolt
July 2023
2
Marketplace 5306-01-341-6178
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-341-6178 1+ Documents (More...)
Every Day 5306-01-341-6178 RQST NE Updated Every Day 5306-01-341-6178 RQST Updated Every Day 5306-01
/fsg-53/fsc-5306/us 5306-01-341-6178 Key Head Bolt 5306013416178013416178 12592669 A headed externally
Restrictions 5306-01-341-6178
5306-01-341-6178 is a Key Head Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-341-6178
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-341-6178
- US Army (A919)
- Effective Date:
- 1 Jul 2007
- Former MOE Rule:
- A403
- Supplementary Receivers:
- BFCN
Approved Sources 5306-01-341-6178
- Part Number
- Manufacturer
- Status
- 12592669
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-01-341-6178
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Used On Abf334 Ar5
- Fastener Length [AASB]
- 1.960 Inches Nominal
- Head Diameter [AASL]
- 0.3745 Inches Nominal
- Head Height [AASU]
- 0.520 Inches Nominal
- Head Style [AASK]

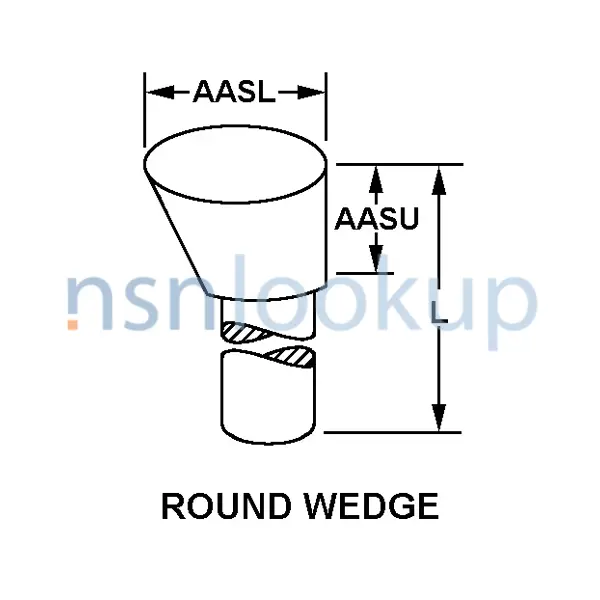

- Round Wedge
- Material [MATT]
- Steel Comp 1029 Overall And Steel Comp 1040 Overall
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Material Document And Classification [MDCL]
- Astm A108 Assn Std Single Material Response Overall Or Astm A576 Assn Std Single Material Response Overall
- Thread Series Designator [THSD]
- Unc
- Surface Treatment Document And Classification [STDC]
- Mil-P-16232,Type Z,Cl 1 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Phosphate Zinc Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 1.183 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 20
