5306-01-330-8490

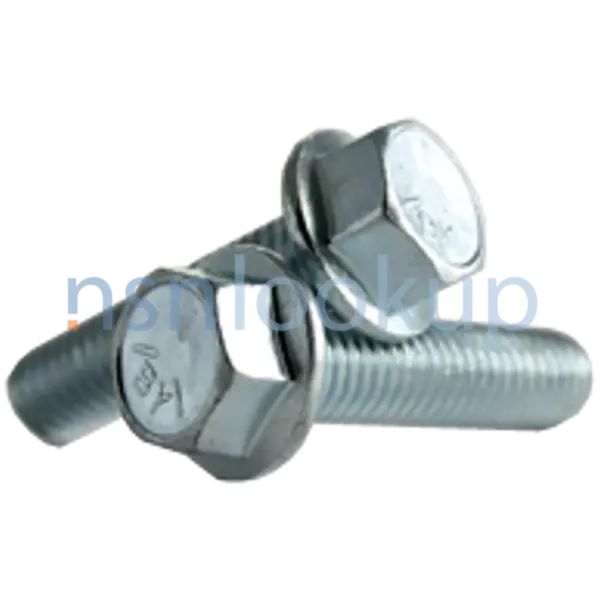

Machine Bolt
5306013308490 013308490 12414307-037 EN1665-M8X1.25X25-10.9A2D 207582586 19M7867 DIN6921M8X1.25X25-10.9A2D 12414307
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
November 2023
25
Marketplace 5306-01-330-8490
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-330-8490 5+ Documents (More...)
12414307-037 BOLT 27 EA NS Request Quotation 19M7867 BOLT 20 EA NS Request Quotation Subscribe to View
Vendor Details... 12414307 BOLT,MACHINE 68 EA NS Request Quotation Updated Every Day 5306-01-330-8490
fsc-5306/us 5306-01-369-8193 Machine Bolt 5306013698193 013698193 -078 DIN6921 M12X1,5X35-10.9A3D 12414307
12414307-035 An externally threaded fastener designed for insertion through holes in assembled parts
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-149-6278 Machine Bolt 5306011496278011496278 12414307
5306-01-369-6095 Machine Bolt 5306013696095 013696095, Active) Secondary Buy RNCC 5 RNVC 2 DAC E 12414307
5306-01-369-6095 Machine Bolt 5306013696095 013696095, Active) NATO Reference RNCC 6 RNVC 9 DAC 9 12414307
your Account Upgrade 5306-01-326-4911Machine Bolt5306013264911 013264911EN1665-M8X1.25X20-10.9A2D 12414307
Quotation 12414307-050 BOLT,MACHINE 4 EA NS Request Quotation Subscribe to View Vendor Details... 12414307
Machine Bolt 12414307-037RNCC -037RNCC https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-377
Restrictions 5306-01-330-8490
5306-01-330-8490 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-330-8490
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-330-8490
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCL
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2007
- Supplementary Collaborators:
- GTHD
- Australia (ZA01)
- Effective Date:
- 1 Mar 2007
- France (ZF01)
- Effective Date:
- 19 Jun 2007
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2003
Approved Sources 5306-01-330-8490
- Part Number
- Manufacturer
- Status
- 12414307-037
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- EN1665-M8X1.25X25-10.9A2D
- I9008 - International Organization For (Active)
- Primary Buy
- Primary Buy
- 207582586
- A097G - Brp Finland Oy (Active)
- Secondary Buy
- Secondary Buy
- 19M7867
- Z0944 - Hitachi Construction Machinery (Active)
- Secondary Buy
- Secondary Buy
- 12414307-037
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 19M7867
- 75755 - Deere & Company (Active)
- Secondary Buy
- Secondary Buy
- DIN6921M8X1.25X25-10.9A2D
- D8286 - Din Deutsches Institut Fur Normung (Active)
- Secondary Buy
- Secondary Buy
- 19M7867
- ZB955 - Rdo Equipment Pty Ltd (Active)
- Secondary Buy
- Secondary Buy
- 12414307-037
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- 19M7867
- 1J955 - John Deere Construction & Forestry (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 12414307
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5306-01-330-8490
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Add-On Armor, Fmtv
- External Thread Tolerance Class [CQWR]
- 6H
- Fastener Length [AASB]
- 25.0 Millimeters Nominal
- Head Style [AASK]
- Hexagon Extended Washer
- Material [MATT]
- Steel Property Class 10.9 Overall
- Nominal Thread Diameter [AHYM]
- 8.0 Millimeters
- Thread Series Designator [THSD]
- M
- Surface Treatment [SFTT]
- Zinc Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 22.5 Millimeters Minimum And 25.0 Millimeters Maximum
- Thread Pitch In Millimeters [CQQR]
- 1.25
