5306-01-253-2239
Externally Relieved Body Bolt
5306012532239 012532239 863C0120050-003
An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY. View more Externally Relieved Body Bolt
November 2023
5
Marketplace 5306-01-253-2239
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-253-2239 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5306-01-253-2239 RQST NE Updated Every Day 5306-01-253-2239 RQST
Updated Every Day 5306-01-253-2239 RQST NE Related Documents 5306-01-253-2239 3+ Documents ( More...
Externally Relieved Body Bolt 5306012532239 Upgrade your Account Upgrade 5306-01-253-2239Externally
Relieved Body Bolt5306012532239 012532239 863C0120050 Upgrade your Account Upgrade 5306-01-253-2239Externally
Externally Relieved Body Bolt 5306012532239 Upgrade your Account Upgrade 5306-01-253-2239Externally
Relieved Body Bolt5306012532239 012532239 863C0120050 Restrictions 5340-01-253-1462 DEMIL: A | DEMILI
Restrictions 5306-01-253-2239
5306-01-253-2239 is a Externally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-253-2239
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-253-2239
- US Air Force (FUGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FUKZ
Approved Sources 5306-01-253-2239
- Part Number
- Manufacturer
- Status
- 863C0120050-003
- Manufacturer
- 04236 - Lockheed Martin Corp (Active)
- Original Design
- Original Design
Datasheet 5306-01-253-2239
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 2.120 Inches Nominal First Hole
- Distance From Largest Bearing Surface Of Head To End Of First Diameter [AAWH]
- 1.625 Inches Nominal
- Distance From Largest Bearing Surface Of Head To End Of Second Diameter [AAWJ]
- 1.719 Inches Nominal
- Externally Relieved Body Diameter Quantity [CSNG]
- 2
- Fastener Length [AASB]
- 2.512 Inches Minimum And 2.542 Inches Maximum
- First Diameter From Head [AAWC]
- 0.623 Inches Minimum And 0.625 Inches Maximum
- Head Height [AASU]
- 2.110 Inches Minimum And 2.150 Inches Maximum
- Head Length [AASV]
- 2.500 Inches Nominal
- Head Style [AASK]

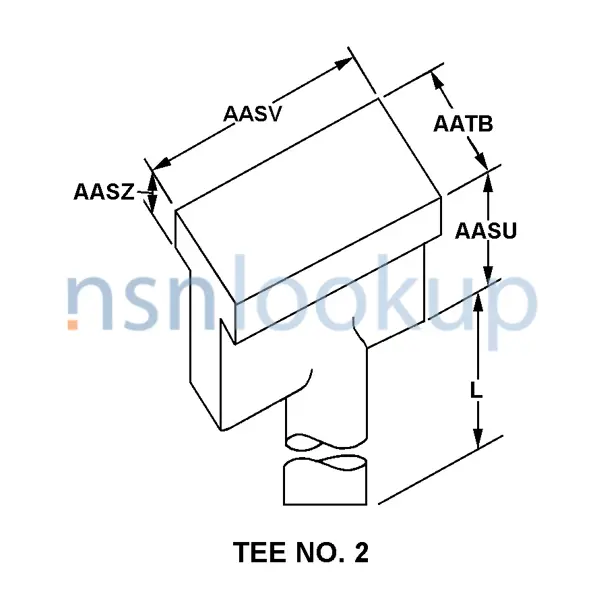

- Tee No. 2
- Hole Configuration Style [CRHC]
- Square Longitudinal Hole
- Hole Diameter [AAUB]
- 0.249 Inches Minimum And 0.256 Inches Maximum
- Hole Quantity [ASXK]
- 4
- Hole Type [BQDM]
- Drilled
- Nominal Thread Diameter [AHYM]
- 0.500 Inches
- Point Chamfer Angle [CWDK]
- 45.0 Degrees Nominal
- Point Length [AAUY]
- 0.030 Inches Nominal
- Point Style [ABQJ]
- Flat
- Second Diameter From Head [AAWD]
- 0.417 Inches Nominal
- Shank Unthreaded Hole Diameter [AAWB]
- 0.141 Inches Minimum First Hole And 0.151 Inches Maximum First Hole
- Thread Series Designator [THSD]
- Unjf
- Width Between Flats [AATB]
- 1.890 Inches Nominal
- Tee Head Flange Thickness [AASZ]
- 0.380 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.808 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 20
