5306-01-225-5203
Eye Bolt
5306012255203 012255203 113634-3
An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END. View more Eye Bolt
January 2023
11
Marketplace 5306-01-225-5203
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-225-5203 2+ Documents (More...)
5306-01-225-5203 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-225-5203
Eye Bolt 5306012255203 012255203,113634-3 113634-3 An externally threaded device whose threaded portion
Eye Bolt 5306012255203 012255203,113634-3 Upgrade for $1 a day Upgrade your Account Upgrade 5306
-01-225-5203Eye Bolt5306012255203 012255203 113634 Restrictions 5895-00-763-5984 DEMIL: Q | DEMILI :
Restrictions 5306-01-225-5203
5306-01-225-5203 is a Eye Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-01-225-5203
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-225-5203
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5306-01-225-5203
- Part Number
- Manufacturer
- Status
- 113634-3
- Manufacturer
- 83014 - Hartwell Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-01-225-5203
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Center Of Eye To Shank End [CRHT]
- 1.235 Inches Minimum And 1.255 Inches Maximum
- Eye Length [AATU]
- 0.413 Inches Minimum And 0.433 Inches Maximum
- Eye Stock Diameter [AATZ]
- 0.210 Inches Minimum And 0.218 Inches Maximum
- Eye Width [AATV]
- 0.260 Inches Minimum And 0.270 Inches Maximum
- Material [MATT]
- Steel Comp 4130 Overall
- Nominal Thread Diameter [AHYM]
- 8.0 Millimeters
- Shank Length [AATR]
- 1.153 Inches Minimum And 1.173 Inches Maximum
- Overall Length [ABHP]
- 2.226 Inches Minimum And 2.246 Inches Maximum

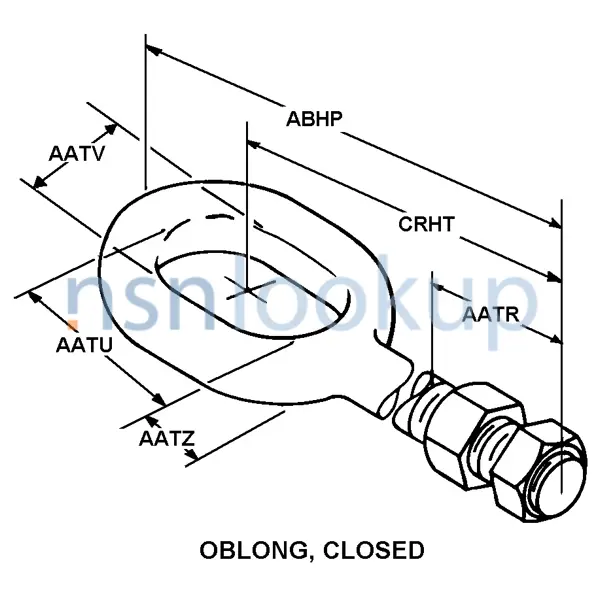

- Style Designator [STYL]
- Oblong, Closed
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.070 Inches Minimum And 0.090 Inches Maximum
- Thread Series Designator [THSD]
- M
- Thread Pitch In Millimeters [CQQR]
- 0.75
Similar Supply Items to 5306-01-225-5203
Freight Information 5306-01-225-5203
5306-01-225-5203 has freight characteristics managed by Germany.. 5306-01-225-5203 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
