Premium Information is available for this item - Upgrade for $1 a day
5306-01-148-7456

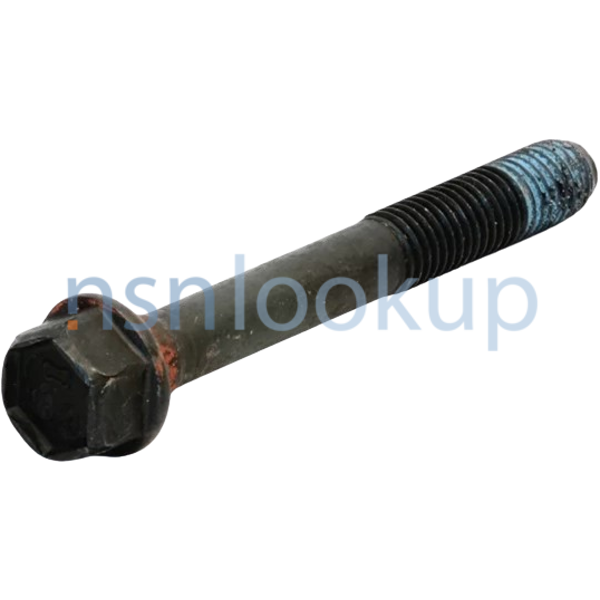

Externally Relieved Body Bolt
5306011487456 011487456 14077193 14077194
An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY. View more Externally Relieved Body Bolt
Managed by United States
NSN Created on 10 Mar 1983
Data Last Changed
August 2025
August 2025
NATO Update Count
10
10
NATO Data Quality
Marketplace 5306-01-148-7456
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-148-7456 4+ Documents (More...)
14077193 14077194 An externally threaded fastener whose threaded portion is of one nominal diameter,
EA NS Request Quotation Updated Every Day 14077193 RQST NE Updated Every Day 14077194 RQST NE Updated
Every Day 5306-01-148-7456 RQST NE Updated Every Day 5306-01-148-7456 RQST Updated Every Day 5306-01
EA NS Request Quotation Updated Every Day 14077193 RQST NE Updated Every Day 14077194 RQST NE Updated
Every Day 5306-01-148-7456 RQST NE Updated Every Day 5306-01-148-7456 RQST Updated Every Day 5306-01
Upgrade for $1 a day Upgrade your Account Upgrade 5306-01-410-8159Machine Bolt5306014108159 014108159 14077194
to View Vendor Details... 014108159.5306 BOLT,MACHINE 6 EA NS Request Quotation Updated Every Day 14077194
Externally Relieved Body Bolt 5306011487456 your Account Upgrade 5306-01-148-7456Externally Relieved
to View Vendor Details... 014108159.5306 BOLT,MACHINE 6 EA NS Request Quotation Updated Every Day 14077194
Externally Relieved Body Bolt 5306011487456 your Account Upgrade 5306-01-148-7456Externally Relieved
is a Externally Relieved Body Bolt Similar Supply Items to 9999-99-610-7953 5306-00-933-0994 5306-01-148-7456
is a Externally Relieved Body Bolt Similar Supply Items to 9999-99-617-7552 5306-00-933-0994 5306-01-148-7456
Restrictions 5306-01-148-7456
5306-01-148-7456 is a Externally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-148-7456
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-148-7456
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GT
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Jun 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
Approved Sources 5306-01-148-7456
- Part Number
- Manufacturer
- Status
- 14077193
- Manufacturer
- 7X677 - General Motors Llc (Active)
- Primary Buy
- Primary Buy
- 14077193
- 7E548 - Wilson-Garner Co (Active)
- Secondary Buy
- Secondary Buy
- 14077194
- 7X677 - General Motors Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 14077193
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-01-148-7456
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Largest Bearing Surface Of Head To End Of First Diameter [AAWH]
- 69.0 Millimeters Minimum And 75.5 Millimeters Maximum
- Extended Washer Thickness [AATD]
- 2.0 Millimeters Nominal
- Extended Washer Diameter [AATC]
- 22.3 Millimeters Minimum And 22.9 Millimeters Maximum
- Externally Relieved Body Diameter Quantity [CSNG]
- 1
- Fastener Length [AASB]
- 96.50 Millimeters Minimum And 97.50 Millimeters Maximum
- First Diameter From Head [AAWC]
- 10.7 Millimeters Minimum And 11.2 Millimeters Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum Overall And 40.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 11.4 Millimeters Minimum And 13.2 Millimeters Maximum
- Head Style [AASK]
- Hexagon Extended Washer
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 4037 Overall
- Nominal Thread Diameter [AHYM]
- 12.0 Millimeters
- Width Between Flats [AATB]
- 17.67 Millimeters Minimum And 18.00 Millimeters Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 22.0 Millimeters Minimum And 27.5 Millimeters Maximum
- Thread Series Designator [THSD]
- M
- Thread Pitch In Millimeters [CQQR]
- 1.75
Weapon Systems (WSDC) 5306-01-148-7456
DLA Procurement Analysis 5306-01-148-7456
- Last Stock Position:
- 37605 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-01-148-7456
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5306-01-410-8159
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5306-01-148-7456
Freight Information 5306-01-148-7456
5306-01-148-7456 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-148-7456 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-148-7456 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-01-148-7456 is not classified as a special type of cargo when transported by water. 5306-01-148-7456 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-01-148-7456
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-01-148-7456 35 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623V426Z
- 28 Jul 2023
- Subscribe
- 405
- Subscribe
- Subscribe
- Subscribe
- SPE4A523F8856
- 19 May 2023
- Subscribe
- 6519
- Subscribe
- Subscribe
- Subscribe
- SPE4A523F8856
- 19 May 2023
- Subscribe
- 6519
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F7149
- 14 Apr 2023
- Subscribe
- 2059
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F7149
- 14 Apr 2023
- Subscribe
- 2059
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F3398
- 13 Jan 2023
- Subscribe
- 164
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F3398
- 13 Jan 2023
- Subscribe
- 164
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F013H
- 22 Jun 2022
- Subscribe
- 1277
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F013H
- 22 Jun 2022
- Subscribe
- 1277
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F8938
- 15 May 2022
- Subscribe
- 367
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F8938
- 15 May 2022
- Subscribe
- 367
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F8244
- 15 Apr 2022
- Subscribe
- 10162
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F8244
- 15 Apr 2022
- Subscribe
- 10162
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F3242P00001
- 28 Nov 2018
- Subscribe
- 11086
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F3241
- 28 Nov 2018
- Subscribe
- 1505
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F2055
- 02 Nov 2018
- Subscribe
- 4718
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F2056
- 02 Nov 2018
- Subscribe
- 8110
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F0268
- 03 Oct 2018
- Subscribe
- 6490
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F0267
- 03 Oct 2018
- Subscribe
- 4869
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F377Q
- 29 Aug 2018
- Subscribe
- 2575
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F377R
- 29 Aug 2018
- Subscribe
- 12703
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010395
- 11 May 2017
- Subscribe
- 5278
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010394
- 04 May 2017
- Subscribe
- 3986
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010365
- 29 Mar 2017
- Subscribe
- 6885
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010364
- 24 Mar 2017
- Subscribe
- 13530
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010363
- 24 Mar 2017
- Subscribe
- 2560
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010343
- 01 Feb 2017
- Subscribe
- 29745
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010088
- 24 Jul 2015
- Subscribe
- 23303
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010060
- 26 Mar 2015
- Subscribe
- 5804
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010059
- 26 Mar 2015
- Subscribe
- 2814
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010043
- 29 Jan 2015
- Subscribe
- 17186
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010042
- 29 Jan 2015
- Subscribe
- 9505
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010037
- 04 Jan 2015
- Subscribe
- 24001
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010018
- 02 Jul 2014
- Subscribe
- 18215
- Subscribe
- Subscribe
- Subscribe
- SPE5EY14D05010015
- 10 Jun 2014
- Subscribe
- 62300
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5306-01-148-7456 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
