5306-01-082-9506
Internally Relieved Body Bolt
5306010829506 010829506 2-03132 2-759-012-03132 CL10395
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
May 2023
6
Marketplace 5306-01-082-9506
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-082-9506 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5306-01-082-9506 RQST NE Updated Every Day 5306-01-082-9506 RQST
) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-082-9506 Internally Relieved Body Bolt 5306010829506
Internally Relieved Body Bolt 5306010829506 Restrictions Approved Sources Datasheet Management
JavaScript in your web browser . 5970-99-630-7832Plate Insulator5970996307832 996307832SDA240313503-2-03132
Internally Relieved Body Bolt 5306010829506 Upgrade your Account Upgrade 5306-01-082-9506Internally
Relieved Body Bolt5306010829506 010829506 2-03132 2-759-012-03132 CL10395 An externally threaded fastener
Restrictions 5306-01-082-9506
5306-01-082-9506 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-01-082-9506
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-082-9506
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC10
Approved Sources 5306-01-082-9506
- Part Number
- Manufacturer
- Status
- 2-03132
- Manufacturer
- 77873 - Rockford Powertrain Inc (Active)
- Primary Buy
- Primary Buy
- 2-759-012-03132
- 77873 - Rockford Powertrain Inc (Active)
- Secondary Buy
- Secondary Buy
- CL10395
- 77873 - Rockford Powertrain Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-01-082-9506
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.515 Inches Minimum And 0.545 Inches Maximum
- Hardness Rating [CQFM]
- 83.0 Rockwell Superficial 15-N Minimum Overall And 88.0 Rockwell Superficial 15-N Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.170 Inches Maximum
- Head Style [AASK]
- Crowned Hexagon
- Hole Configuration Style [CRHC]
- Round
- Hole Diameter [AAUB]
- 0.188 Inches Nominal
- Hole Quantity [ASXK]
- 1
- Hole Type [BQDM]
- Drilled
- Material [MATT]
- Steel Comp 4037 Overall Or Steel Comp 4135 Overall
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Shoulder Diameter [AAVH]
- 0.280 Inches Nominal
- Shoulder Length [AAVK]
- 0.483 Inches Minimum And 0.494 Inches Maximum
- Width Between Flats [AATB]
- 0.4280 Inches Minimum And 0.4375 Inches Maximum

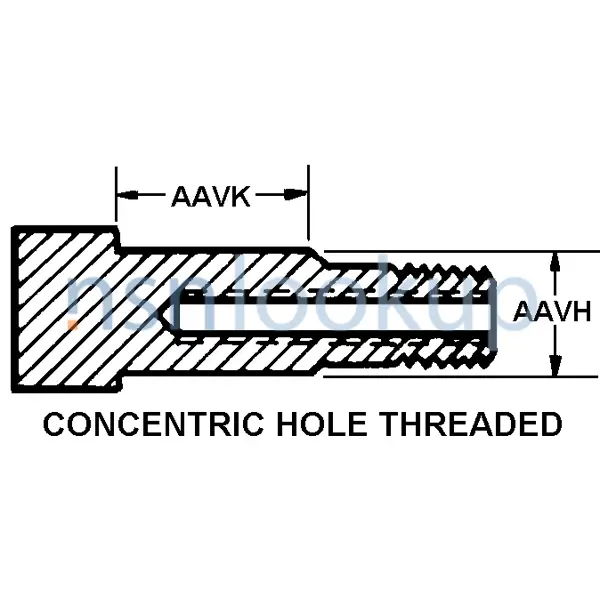

- Style Designator [STYL]
- Concentric Hole Threaded
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.515 Inches Minimum And 0.545 Inches Maximum
- Thread Series Designator [THSD]
- Unf
- Thread Series [BZRR]
- Unf Concentric Hole
- Thread Quantity Per Inch [CMLP]
- 24
DLA Procurement Analysis 5306-01-082-9506
Management Data 5306-01-082-9506
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5306-01-082-9506
Freight Information 5306-01-082-9506
5306-01-082-9506 has freight characteristics managed by Australia.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-01-082-9506 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-01-082-9506 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-01-082-9506 is not classified as a special type of cargo when transported by water. 5306-01-082-9506 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
