5306-01-040-9891

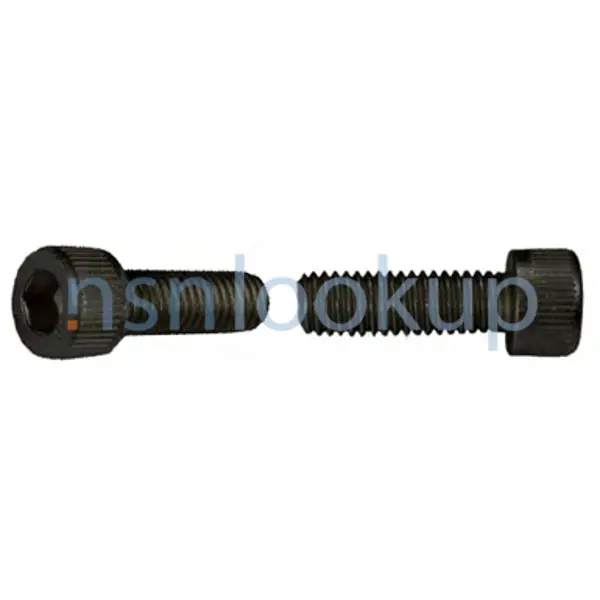

Internal Wrenching Bolt
5306010409891 010409891 NAS1351-3-24
An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE. View more Internal Wrenching Bolt
November 2023
24
Marketplace 5306-01-040-9891
Request a Quotation from participating marketplace vendors
Related Documents 5306-01-040-9891 1+ Documents (More...)
NAS1351-3-24 BOLT,INTERNAL WRENCHING 248 EA NS Request Quotation Updated Every Day 5306-01-040-9891 RQST
NE Updated Every Day 5306-01-040-9891 RQST Updated Every Day 5306-01-040-9891 RQST NE Related Documents
Restrictions 5306-01-040-9891
5306-01-040-9891 is a Internal Wrenching Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-01-040-9891
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-01-040-9891
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GT
- Poland (WP01)
- Effective Date:
- 1 Dec 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 2004
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Oct 1999
Approved Sources 5306-01-040-9891
- Part Number
- Manufacturer
- Status
- NAS1351-3-24
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-01-040-9891
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.460 Inches Minimum And 1.500 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.303 Inches Minimum And 0.312 Inches Maximum
- Head Height [AASU]
- 0.185 Inches Minimum And 0.190 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 155000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Width Across Flats [ASDB]
- 0.156 Inches Minimum And 0.159 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Mil-C-13924 Class 1 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.875 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unrf
