5306-00-884-7738
Internally Relieved Body Bolt
5306008847738 008847738 10892203
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
May 2023
18
Marketplace 5306-00-884-7738
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-884-7738 1+ Documents (More...)
RQST NE Updated Every Day 5306-00-884-7738 RQST Updated Every Day 5306-00-884-7738 RQST NE Related Documents
5306-00-884-7738 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-884-7738
Restrictions 5306-00-884-7738
5306-00-884-7738 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-884-7738
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-884-7738
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5306-00-884-7738
- Part Number
- Manufacturer
- Status
- 10892203
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-00-884-7738
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Concentric Hole Diameter [AAXC]
- 0.3125 Inches Nominal
- Fastener Length [AASB]
- 0.9687 Inches Nominal
- Hardness Rating [CQFM]
- 170.0 Brinell Hultgren Nominal Overall
- Head Height [AASU]
- 0.375 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Qq-S-634 Fed Spec All Material Responses Overall
- Material [MATT]
- Steel Comp 1040 Overall Or Steel Comp 1145 Overall
- Nominal Thread Size [CQJX]
- 0.5625 Inches Counterbore
- Nominal Thread Diameter [AHYM]
- 33.0 Millimeters
- Nonstandard Thread Pitch Diameter [CFSG]
- +1.2026/+1.2992 Inches
- Internal Thread Class [CWWR]
- 3B Counterbore
- Internal Thread Direction [CGMJ]
- Right-Hand Counterbore
- Internal Thread Length [ABXT]
- 0.598 Inches Nominal Counterbore
- Width Between Flats [AATB]
- 1.500 Inches Nominal

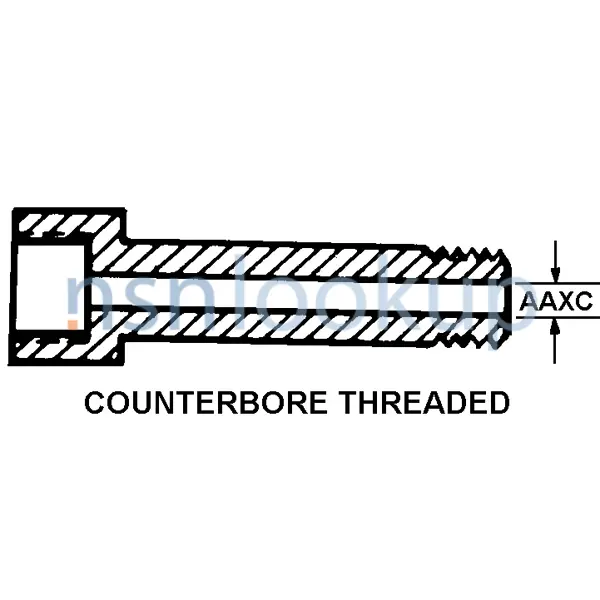

- Style Designator [STYL]
- Counterbore Threaded
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.8906 Inches Nominal
- Thread Series Designator [THSD]
- Iso M
- Thread Series [BZRR]
- Unjf Counterbore
- Thread Pitch In Millimeters [CQQR]
- 2.0
- Threads Per Inch [AAEL]
- 18 Counterbore
