5306-00-846-0933
Eye Bolt
5306008460933 008460933 SL10662PC37 17537P
An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END. View more Eye Bolt
November 2023
5
Marketplace 5306-00-846-0933
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-846-0933 2+ Documents (More...)
SL10662PC37 BOLT,EYE 6 EA NS Request Quotation 17537P BOLT,EYE 4 EA NS Request Quotation FedMall Updated
Every Day 5306-00-846-0933 RQST Updated Every Day 5306-00-846-0933 RQST NE Related Documents 5306-00-
https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-846-0939 Flat Washer 5310008460939008460939 SL10662PC37
Eye Bolt 5306008460933 008460933,SL10662PC37 Documents 5306-00-846-0933 1+ Documents ( More...
Restrictions 5306-00-846-0933
5306-00-846-0933 is a Eye Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-846-0933
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-846-0933
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTHXHD
Approved Sources 5306-00-846-0933
- Part Number
- Manufacturer
- Status
- 17537P
- Manufacturer
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 17537P
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- SL10662PC37
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Secondary Buy
- Secondary Buy
- SL10662PC37
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-00-846-0933
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Diameter [AHYM]
- 0.625 Inches
- Thread Quantity Per Inch [CMLP]
- 11
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.500 Inches Minimum
- Material [MATT]
- Copper Alloy 964 Overall
- Material Document And Classification [MDCL]
- Mil-C-20159 Fed Std Single Material Response Overall

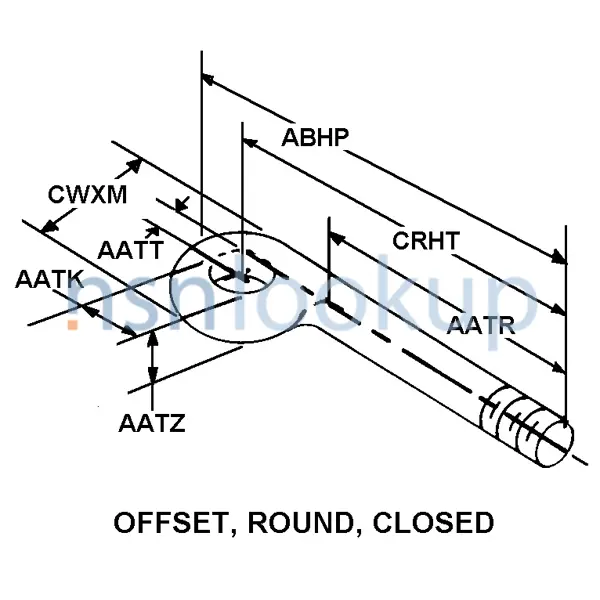

- Style Designator [STYL]
- Offset, Round, Closed
- Eye Inside Diameter [AATK]
- 1.062 Inches Nominal
- Shank Length [AATR]
- 2.562 Inches Nominal
- Eye Offset [AATT]
- 0.500 Inches Nominal
- Eye Stock Diameter [AATZ]
- 0.625 Inches Nominal
- Overall Length [ABHP]
- 4.188 Inches Nominal
- Distance From Center Of Eye To Shank End [CRHT]
- 3.378 Inches Nominal
- Eye Outside Width [CWXM]
- 1.625 Inches Nominal
Weapon Systems (WSDC) 5306-00-846-0933
DLA Procurement Analysis 5306-00-846-0933
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-846-0933
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5306-00-846-0933
Freight Information 5306-00-846-0933
5306-00-846-0933 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093460. A Sub NMFC of X. It has a NMFC Description of BOLTS/NUTS NOI BBC/ZINC. 5306-00-846-0933 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48930 which rates the freight between FCL and LCL. 5306-00-846-0933 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5306-00-846-0933 is not classified as a special type of cargo when transported by water. 5306-00-846-0933 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-846-0933
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5306-00-846-0933 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
