5306-00-814-6565

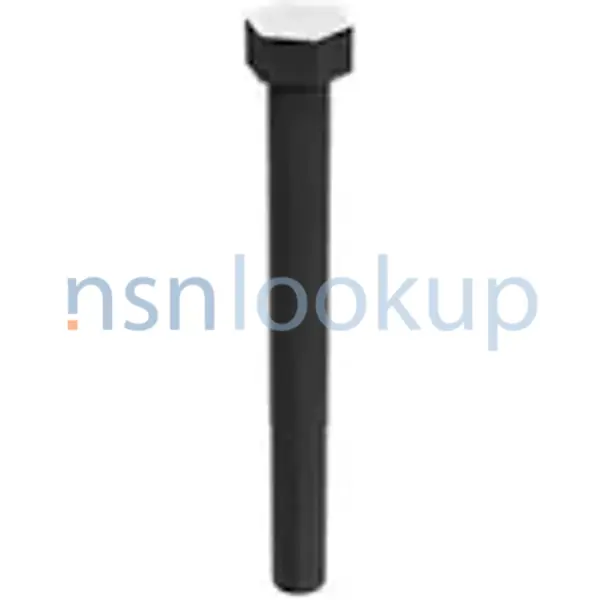

Machine Bolt
5306008146565 008146565 21372 S1608 17KP361 0S1608
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
July 2025
36
Marketplace 5306-00-814-6565
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-814-6565 5+ Documents (More...)
RQST NE Updated Every Day 5306-00-814-6565 RQST Updated Every Day 5306-00-814-6565 RQST NE Related
Documents 5306-00-814-6565 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306
Secondary Reference RNCC 5 RNVC 1 DAC 2 BR2931 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-814-6565
Machine Bolt 5306008146565 008146565,0S1608 day Upgrade your Account Upgrade 5306-00-814-6565Machine
- Electronic Components Assembly 5998014318850 0085AU078-186-01SAC-S1608- 5998014318850 DAC 5 078-186
Machine Bolt 5306008146565 008146565,0S1608 Upgrade your Account Upgrade 5306-00-814-6565Machine
Part NumberManufacturerStatusUK/SC/4552-21372 Shoulder Strap https//www.nsnlookup.com /fsg-10/fsc-1005
21372 A manually or power operated valve having three or more ports. 21372 A band of suitably flexible
enable JavaScript in your web browser . 5820-99-777-3527Communication Bay O5820997773527 997773527 S1608
NumberManufacturerStatus9GUN K0584 - Ministry Of Defence (Navy) (Obsolete) Primary Buy RNCC 3 RNVC 2 DAC 2 S1608
Restrictions 5306-00-814-6565
5306-00-814-6565 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-814-6565
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-814-6565
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCL
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2015
- United Kingdom (ZK01)
- Effective Date:
- 1 Dec 1994
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2007
- Portugal (ZP01)
- Effective Date:
- 1 May 2002
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5306-00-814-6565
- Part Number
- Manufacturer
- Status
- S1608
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
- 21372
- 64104 - Dresser, Llc (Active)
- Secondary Buy
- Secondary Buy
- S1608
- K0190 - Caterpillar (Uk) Ltd (Active)
- Secondary Buy
- Secondary Buy
- S1608
- ZF912 - Hastings Deering (Aust) Pty Ltd (Active)
- Secondary Buy
- Secondary Buy
- S1608
- ZY243 - Westrac Pty Ltd (Active)
- Secondary Buy
- Secondary Buy
- S1608
- ZA045 - William Adams Pty Ltd (Active)
- Secondary Buy
- Secondary Buy
- 17KP361
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 0S1608
- 11083 - Caterpillar Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5306-00-814-6565
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Head Style [AASK]
- Hexagon
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.250 Inches Minimum
- Fastener Length [AASB]
- 3.750 Inches Nominal
- Material [MATT]
- Steel Overall
- Head Height [AASU]
- 0.243 Inches Nominal
- Width Between Flats [AATB]
- 0.563 Inches Nominal
- Grip Length [ANEE]
- 2.500 Inches Nominal
- Features Provided [CBBL]
- Finished Head
Weapon Systems (WSDC) 5306-00-814-6565
DLA Procurement Analysis 5306-00-814-6565
- Last Stock Position:
- 502 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-814-6565
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
Similar Supply Items to 5306-00-814-6565
Freight Information 5306-00-814-6565
5306-00-814-6565 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-814-6565 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-814-6565 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-814-6565 is not classified as a special type of cargo when transported by water. 5306-00-814-6565 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-814-6565
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-00-814-6565 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E418V6637
- 09 May 2018
- Subscribe
- 291
- Subscribe
- Subscribe
- Subscribe
- SPM7LX15D000181EK
- 11 Oct 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM7LX15D000177SD
- 18 Aug 2016
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPE5E415V3051
- 30 Jan 2015
- Subscribe
- 550
- Subscribe
- Subscribe
- Subscribe
- SPE5E414V4710
- 13 Feb 2014
- Subscribe
- 110
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D901018MV
- 23 Aug 2013
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5306-00-814-6565 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
