5306-00-734-5793

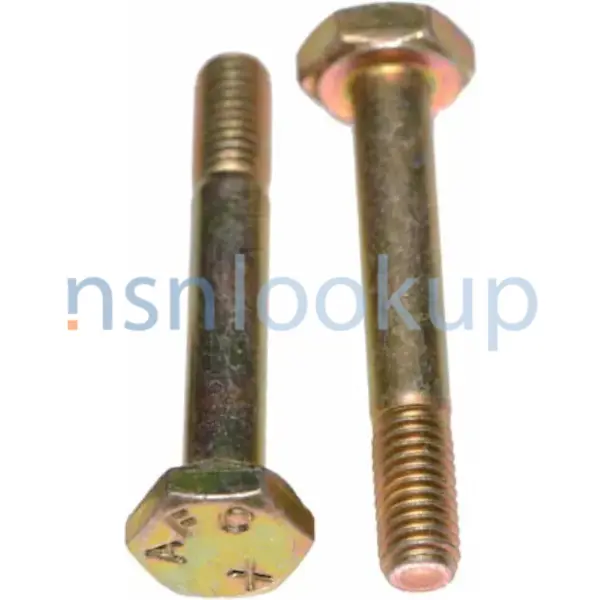

Machine Bolt
5306007345793 007345793 AN3-12A
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
July 2025
16
Marketplace 5306-00-734-5793
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-734-5793 5+ Documents (More...)
Day 5306-00-734-5793 RQST Updated Every Day 5306-00-734-5793 RQST NE Related Documents 5306-00-734-5793
5306007345793007345793,AN3-12A AN3-12A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor
AN3-12A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-12A BOLT,MACHINE 5 EA NS Request Quotation Subscribe to View Vendor Details...
Machine Bolt 5306007345793 007345793,AN3-12A Request Quotation Subscribe to View Vendor Details
Machine Bolt 5306001510782 001510782 5306-00-151-0782Machine Bolt5306001510782 001510782 145-540-90112 AN3-12A
151-1942 5306-00-068-0514 5306-01-127-9361 5306-00-275-5012 5306-00-151-0785 5306-00-722-8780 5306-00-734-5793
151-1942 5306-00-068-0514 5306-01-127-9361 5306-00-275-5012 5306-00-151-0785 5306-00-722-8780 5306-00-734-5793
Restrictions 5306-00-734-5793
5306-00-734-5793 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-734-5793
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-734-5793
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Sep 2009
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5306-00-734-5793
- Part Number
- Manufacturer
- Status
- AN3-12A
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5306-00-734-5793
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Departure From Cited Designator [ZZZX]
- As Modified By Test Data
- Fastener Length [AASB]
- 1.375 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 0.969 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Overall
- Test Data Document [TEST]
- 10001-Poso913717 Standard (Includes Industry Or Association Standards, Individual Manufactureer Standards, Etc.).
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Maximum
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
