5306-00-722-0393

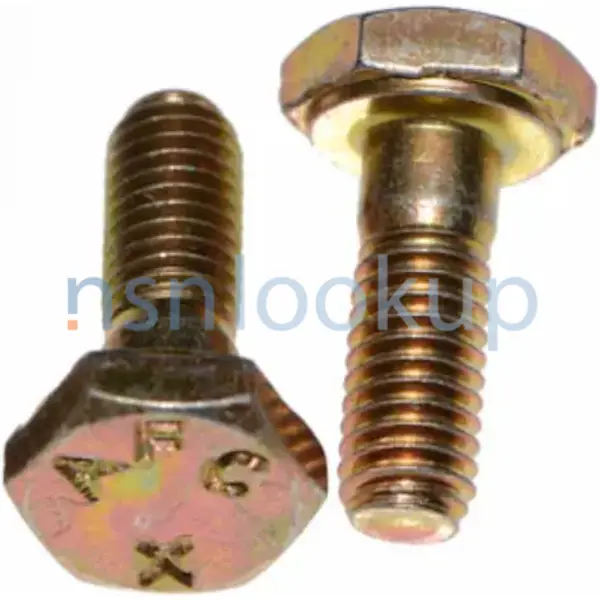

Machine Bolt
5306007220393 007220393 145-540-90104 AN3-4A 7601593 7416602 8790776 8821145 932.19.21.026 STD1459 2010099 807225-00 5306PL0887416 5306PL1369454
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
November 2023
66
Marketplace 5306-00-722-0393
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-722-0393 5+ Documents (More...)
16 HD NS Request Quotation 2010099 BOLT,MACHINE 52 HD NS Request Quotation 8821145 BOLT,MACHINE 13 HD
NS Request Quotation AN3-4A BOLT,MACHINE 25 HD NS Request Quotation 932.19.21.026 BOLT,MACHINE 57 HD
15 EA NS Request Quotation 2010099 BOLT,MACHINE 52 EA NS Request Quotation 807225-00 BOLT,MACHINE 16
EA NS Request Quotation 8790776 BOLT,MACHINE 6 EA NS Request Quotation 932.19.21.026 BOLT,MACHINE 57
6 EA NS Request Quotation STD1459 BOLT,MACHINE 18 EA NS Request Quotation 932.19.21.026 BOLT,MACHINE
57 EA NS Request Quotation 2010099 BOLT,MACHINE 52 EA NS Request Quotation 7601593 BOLT,MACHINE 15 EA
Restrictions 5306-00-722-0393
5306-00-722-0393 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-722-0393
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-722-0393
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Sweden (VK01)
- Effective Date:
- 1 Feb 2017
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jan 2010
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP01)
- Effective Date:
- 1 Jun 2005
- Romania (WR01)
- Effective Date:
- 1 Feb 2012
- Slovakia (WS01)
- Effective Date:
- 1 Jul 2016
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5306-00-722-0393
- Part Number
- Manufacturer
- Status
- 7601593
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- AN3-4A
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 7416602
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 8790776
- 19203 - Combat Capabilities Development (Active)
- Secondary Buy
- Secondary Buy
- 8821145
- 19203 - Combat Capabilities Development (Active)
- Secondary Buy
- Secondary Buy
- AN3-4A
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- AN3-4A
- A0311 - Tecno Trade S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- AN3-4A
- AC910 - Aertekno S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- 2010099
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 932.19.21.026
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- AN3-4A
- F0553 - Safran Aerosystems Ex Safran (Active)
- Secondary Buy
- Secondary Buy
- STD1459
- 80254 - Textron Lycoming Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2010099
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN3-4A
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 807225-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306PL0887416
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5306PL1369454
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 145-540-90104
- 99193 - Honeywell International Inc. (Active)
- Advisory Reference
- Advisory Reference
- AN3-4A
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-722-0393
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.531 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 0.125 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 4037 Overall Or Steel Comp 4130 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall Or Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Material Document And Classification [MDCL]
- Mil-B-6812 Mil Spec All Material Responses Overall
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
