5306-00-685-3027

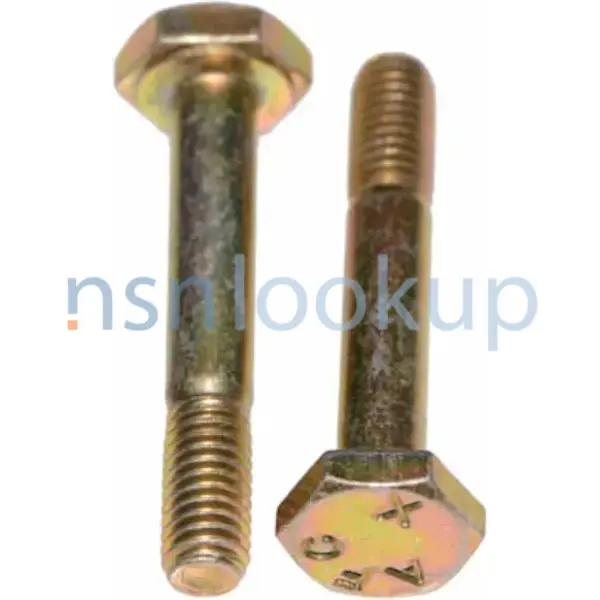

Machine Bolt
5306006853027 006853027 30909B21 932.19.21.031 403214-53 401 270 AN3-11A 5-100-0-03-110 2010144 5100003110 5306PL0964791 5305PL0138022
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
July 2025
July 2025
NATO Update Count
52
52
NATO Data Quality
Marketplace 5306-00-685-3027
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-685-3027 5+ Documents (More...)
30909B21 932.19.21.031 403214-53 401 270 AN3-11A 5-100-0-03-110 2010144 5100003110 5306PL0964791 5305PL0138022
AN3-11A BOLT,MACHINE 1 HD NS Request Quotation Subscribe to View Vendor Details... 401-270 BOLT,MACHINE
AN3-11A BOLT,MACHINE 3125 HD NS Request Quotation Subscribe to View Vendor Details... 5306-00-685-3027
AN3-11A BOLT,MACHINE 1 HD NS Request Quotation Subscribe to View Vendor Details... 401-270 BOLT,MACHINE
AN3-11A BOLT,MACHINE 3125 HD NS Request Quotation Subscribe to View Vendor Details... 5306-00-685-3027
AN3-11A BOLT,MACHINE 52 HD NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 HD NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 HD NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 52 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 52 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details...
AN3-11A BOLT,MACHINE 1 EA NS Request Quotation Subscribe to View Vendor Details...
for $1 a day Upgrade your Account Upgrade 5895-01-300-4331Indicator Assembly5895013004331 013004331 2010144
/www.nsnlookup.com /fsg-58/fsc-5895/us 5895-01-300-4331 Indicator Assembly 5895013004331013004331 2010144
Machine Bolt 5306006853027 006853027,30909B21 Request Quotation Subscribe to View Vendor Details
/www.nsnlookup.com /fsg-58/fsc-5895/us 5895-01-300-4331 Indicator Assembly 5895013004331013004331 2010144
Machine Bolt 5306006853027 006853027,30909B21 Request Quotation Subscribe to View Vendor Details
Restrictions 5306-00-685-3027
5306-00-685-3027 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-685-3027
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-685-3027
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCTBF
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Lithuania (WI01)
- Effective Date:
- 1 Jan 2010
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP01)
- Effective Date:
- 1 Jan 2005
- Romania (WR01)
- Effective Date:
- 1 Jan 2012
- Bulgaria (WU01)
- Effective Date:
- 1 Feb 2008
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 5306-00-685-3027
- Part Number
- Manufacturer
- Status
- AN3-11A
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 932.19.21.031
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- 403214-53
- 35351 - Ge Aviation Systems Llc (Active)
- Secondary Buy
- Secondary Buy
- 2010144
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 401 270
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- AN3-11A
- F0553 - Safran Aerosystems Ex Safran (Active)
- Secondary Buy
- Secondary Buy
- AN3-11A
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- 5-100-0-03-110
- F0086 - Daher Aerospace - Ex Socata (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2010144
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5100003110
- F0086 - Daher Aerospace - Ex Socata (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN3-11A
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306PL0964791
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305PL0138022
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 30909B21
- 70898 - Beechcraft Corporation (Replaced)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-685-3027
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.156 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 0.750 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 4037 Overall Or Steel Comp 4130 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall Or Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Material Document And Classification [MDCL]
- Mil-B-6812 Mil Spec All Material Responses Overall
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
