5306-00-656-0358

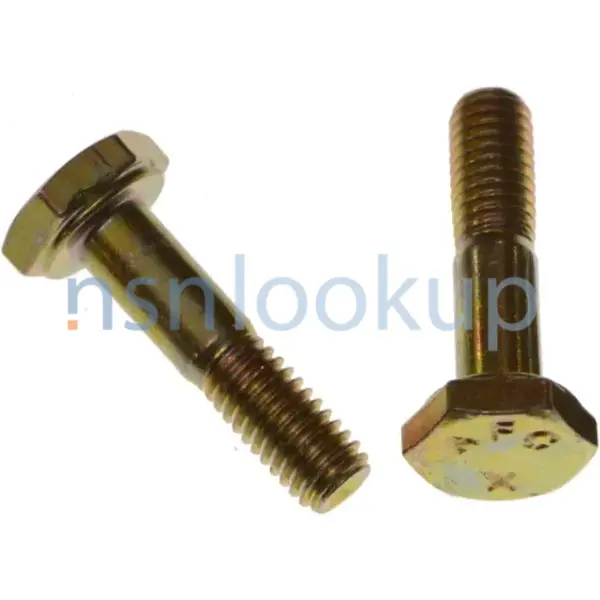

Machine Bolt
5306006560358 006560358 MILB6812 BACB30NF3-6 145-540-90106 AN3-6A AN3-119 400 440 932.19.21.028 6026-3002-8 908124 2010116 6026-8382-2 4107100-001 6026-7001-5 6026-7235-3 6026-8309-2 6026-8332-1 6026-102-1 6026-4260-1 6026-8397-1 6026-9001-31 5306PL0887414 5306PL1696446 5305PL0138387
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
76
76
NATO Data Quality
Marketplace 5306-00-656-0358
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
AN3-119 BOLT,MACHINE 41 HD NS
6026-4260-1 BOLT,MACHINE 52 HD NS
400 440 BOLT,MACHINE 47 HD NS
908124 BOLT,MACHINE 33 HD NS
6026-3002-8 BOLT,MACHINE 20 HD NS
MILB6812 BOLT,MACHINE 6 HD NS
6026-102-1 BOLT,MACHINE 12 HD NS
AN3-6A BOLT,MACHINE 72 HD NS
2010116 BOLT,MACHINE 7 HD NS
932.19.21.028 BOLT,MACHINE 53 HD NS
6026-7001-5 BOLT,MACHINE 32 HD NS
6026-7235-3 BOLT,MACHINE 15 HD NS
6026-8309-2 BOLT,MACHINE 40 HD NS
4107100-001 BOLT,MACHINE 26 HD NS
MIL-B-6812 BOLT,MACHINE 63 HD NS
Updated Every Day 5306-00-656-0358 RQST NE
Updated Every Day 5306-00-656-0358 RQST
Updated Every Day 5306-00-656-0358 RQST NE
Related Documents 5306-00-656-0358 5+ Documents (More...)
MILB6812 BACB30NF3-6 145-540-90106 AN3-6A AN3-119 400 440 932.19.21.028 6026-3002-8 908124 2010116 6026
-8382-2 4107100-001 6026-7001-5 6026-7235-3 6026-8309-2 6026-8332-1 6026-102-1 6026-4260-1 6026-8397-
1 6026-9001-31 5306PL0887414 5306PL1696446 5305PL0138387 An externally threaded fastener designed for
-8382-2 4107100-001 6026-7001-5 6026-7235-3 6026-8309-2 6026-8332-1 6026-102-1 6026-4260-1 6026-8397-
1 6026-9001-31 5306PL0887414 5306PL1696446 5305PL0138387 An externally threaded fastener designed for
10 EA NS Request Quotation AN3-119 BOLT,MACHINE 41 EA NS Request Quotation 908124 BOLT,MACHINE 33 EA
Request Quotation 400 440 BOLT,MACHINE 47 EA NS Request Quotation 4107100-001 BOLT,MACHINE 26 EA NS
Quotation 6026-3002-8 BOLT,MACHINE 20 EA NS Request Quotation MILB6812 BOLT,MACHINE 6 EA NS Request
Request Quotation 400 440 BOLT,MACHINE 47 EA NS Request Quotation 4107100-001 BOLT,MACHINE 26 EA NS
Quotation 6026-3002-8 BOLT,MACHINE 20 EA NS Request Quotation MILB6812 BOLT,MACHINE 6 EA NS Request
12 EA NS Request Quotation 932.19.21.028 BOLT,MACHINE 53 EA NS Request Quotation 2010116 BOLT,MACHINE
7 EA NS Request Quotation 6026-3002-8 BOLT,MACHINE 20 EA NS Request Quotation AN3-119 BOLT,MACHINE 41
NS Request Quotation 6026-7235-3 BOLT,MACHINE 15 EA NS Request Quotation 6026-4260-1 BOLT,MACHINE 52
7 EA NS Request Quotation 6026-3002-8 BOLT,MACHINE 20 EA NS Request Quotation AN3-119 BOLT,MACHINE 41
NS Request Quotation 6026-7235-3 BOLT,MACHINE 15 EA NS Request Quotation 6026-4260-1 BOLT,MACHINE 52
enable JavaScript in your web browser . 5985-14-475-6644Sonde Gamma5985144756644 144756644 2010540 2010116
to enable JavaScript in your web browser . 5836-27-054-4721Video Recorder5836270544721 270544721 2010116
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-656-0358 Machine Bolt 5306006560358 006560358,MILB6812
to enable JavaScript in your web browser . 5836-27-054-4721Video Recorder5836270544721 270544721 2010116
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-656-0358 Machine Bolt 5306006560358 006560358,MILB6812
63 EA NS Request Quotation AN3-119 BOLT,MACHINE 41 EA NS Request Quotation 6026-8397-1 BOLT,MACHINE
15 EA NS Request Quotation AN3-6A BOLT,MACHINE 72 EA NS Request Quotation 932.19.21.028 BOLT,MACHINE
53 EA NS Request Quotation 2010116 BOLT,MACHINE 7 EA NS Request Quotation 400 440 BOLT,MACHINE 47 EA
15 EA NS Request Quotation AN3-6A BOLT,MACHINE 72 EA NS Request Quotation 932.19.21.028 BOLT,MACHINE
53 EA NS Request Quotation 2010116 BOLT,MACHINE 7 EA NS Request Quotation 400 440 BOLT,MACHINE 47 EA
Restrictions 5306-00-656-0358
5306-00-656-0358 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-656-0358
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-656-0358
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G800)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Sweden (VK01)
- Effective Date:
- 1 Feb 2017
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP01)
- Effective Date:
- 1 Apr 2003
- Slovakia (WS01)
- Effective Date:
- 1 Jul 2016
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Czech Republic (WZ01)
- Effective Date:
- 1 Jun 2010
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Aug 2016
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5306-00-656-0358
- Part Number
- Manufacturer
- Status
- AN3-119
- Manufacturer
- 25472 - Goodrich Corporation (Active)
- Primary Buy
- Primary Buy
- AN3-6A
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MILB6812
- 80205 - National Aerospace Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- BACB30NF3-6
- 81205 - The Boeing Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4107100-001
- 82577 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 2010116
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 400 440
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- 932.19.21.028
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- AN3-6A
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- 6026-3002-8
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 908124
- 55284 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 908124
- 06848 - Honeywell International Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2010116
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-8382-2
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MILB6812
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4107100-001
- 05869 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-7001-5
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-7235-3
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-8309-2
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-8332-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-102-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-4260-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN3-6A
- 00539 - Del Mar Avionics, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-8397-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6026-9001-31
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN3-6A
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306006560358
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5306PL0887414
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5306PL1696446
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305PL0138387
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 145-540-90106
- 99193 - Honeywell International Inc. (Active)
- Advisory Reference
- Advisory Reference
- AN3-6A
- 88444 - American Safety Technologies Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-656-0358
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Kb-1 Support Equipment; Aircraft;B-1B Trainer;Harpoon Missile;Tf-56 En;2320-01-097-0248,2320-01-097-0249,2320-01-100-7672,2320-01-097-0260,2320-01-195-7641, Hemtt Family (Heavy Expanded Mobility Tactical Trucks)
- Fastener Length [AASB]
- 0.781 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 0.375 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 4037 Overall Or Steel Comp 4130 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall Or Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Material Document And Classification [MDCL]
- Mil-B-6812 Mil Spec All Material Responses Overall
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5306-00-656-0358
DLA Procurement Analysis 5306-00-656-0358
- Last Stock Position:
- 1317100 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-656-0358
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- HD
- Subscribe
- 1
- HD
- Dec 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- US Marine Corps (DM)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5306-00-151-0786
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5306-00-656-0358
5306-12-372-7841 5306-22-624-7596 5306-22-618-3006 5306-66-100-0278 5306-99-143-0962 5306-98-204-3644 5306-99-612-9017 5306-17-101-7704 5306-99-143-9132 5306-99-216-1683 5306-99-139-8970 5306-99-613-0094 5306-99-536-3340 5306-99-657-8501 5306-98-207-6378 5306-99-479-6094 5306-21-896-2543 5306-99-123-3723
Freight Information 5306-00-656-0358
5306-00-656-0358 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-656-0358 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-656-0358 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-656-0358 is not classified as a special type of cargo when transported by water. 5306-00-656-0358 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-656-0358
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-00-656-0358 1 Records
Contracting Technical Data File (CTDF) 5306-00-656-0358 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
