Internally Relieved Body Bolt
5306006419445 006419445 BP62017 SCB84364 BP62017ISSUE3
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
May 2023
18
Marketplace 5306-00-641-9445
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-641-9445 2+ Documents (More...)
(Identification) 1/2 NSN 5306-00-641-9445 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5306-00-641-9445 RQST Updated Every Day 5306-00-641-9445 RQST NE Related Documents
Internally Relieved Body Bolt 5306006419445 )M4Reversal Of Phrase Code A 5305-00-206-1312US Marine
Restrictions 5306-00-641-9445
5306-00-641-9445 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-641-9445
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-641-9445
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5306-00-641-9445
- Part Number
- Manufacturer
- Status
- BP62017
- Manufacturer
- 28528 - Itt Industries Inc (Replaced)
- Original Design
- Original Design
- BP62017
- 31550 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- SCB84364
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
- BP62017ISSUE3
- 31550 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- BP62017ISSUE3
- 28528 - Itt Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-00-641-9445
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Concentric Hole Depth [AAWX]
- 0.281 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.124 Inches Nominal
- Fastener Length [AASB]
- 0.406 Inches Nominal
- Head Height [AASU]
- 0.114 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Copper Alloy 360 Overall
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Nominal Thread Size [CQJX]
- 0.164 Inches Counterbore
- Internal Thread Class [CWWR]
- 2B Concentric Hole
- Internal Thread Direction [CGMJ]
- Right-Hand Counterbore
- Internal Thread Length [ABXT]
- 0.250 Inches Nominal Counterbore
- Special Features [FEAT]
- Washer Face 0.500 In. Dia By 0.010 In. Deep And Two 0.093 In. Dia By 0.050 In. Deep Holes On 0.343 In. Center Spaced 180 Deg Apart On Washer Face
- Width Between Flats [AATB]
- 0.500 Inches Nominal

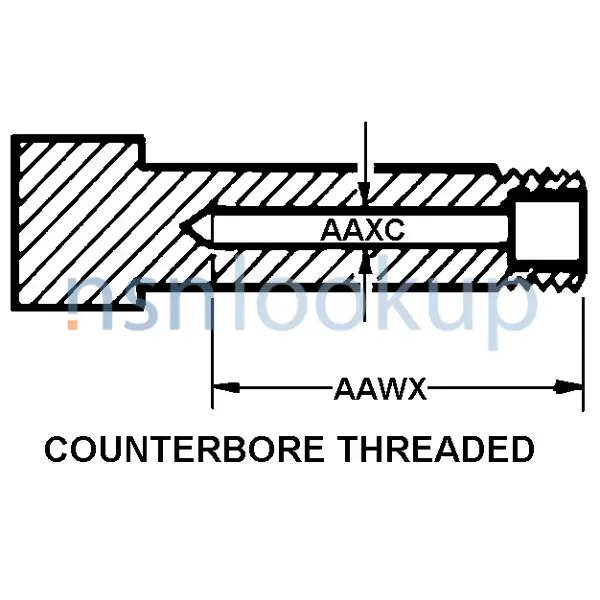

- Style Designator [STYL]
- Counterbore Threaded
- Surface Treatment [SFTT]
- Nickel Overall
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.250 Inches Minimum
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
- Thread Series [BZRR]
- Unc Counterbore
- Threads Per Inch [AAEL]
