5306-00-459-5025
Key Head Bolt
5306004595025 004595025 GP34G44A
A headed externally threaded fastener whose threaded portion is of one nominal diameter with a single rectangular or triangular projection on the underside of the head. View more Key Head Bolt
May 2023
3
Marketplace 5306-00-459-5025
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-459-5025 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5306-00-459-5025 RQST NE Updated Every Day 5306-00-459-5025 RQST
Updated Every Day 5306-00-459-5025 RQST NE Related Documents 5306-00-459-5025 1+ Documents ( More...
Restrictions 5306-00-459-5025
5306-00-459-5025 is a Key Head Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-459-5025
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-459-5025
- National Security Agency (DGX1)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
Approved Sources 5306-00-459-5025
- Part Number
- Manufacturer
- Status
- GP34G44A
- Manufacturer
- 20874 - Erie Strayer Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-00-459-5025
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 78.0 Degrees Nominal
- Fastener Length [AASB]
- 5.500 Inches Minimum And 5.750 Inches Maximum
- Head Height [AASU]
- 0.438 Inches Nominal
- Head Diameter [AASL]
- 2.031 Inches Nominal

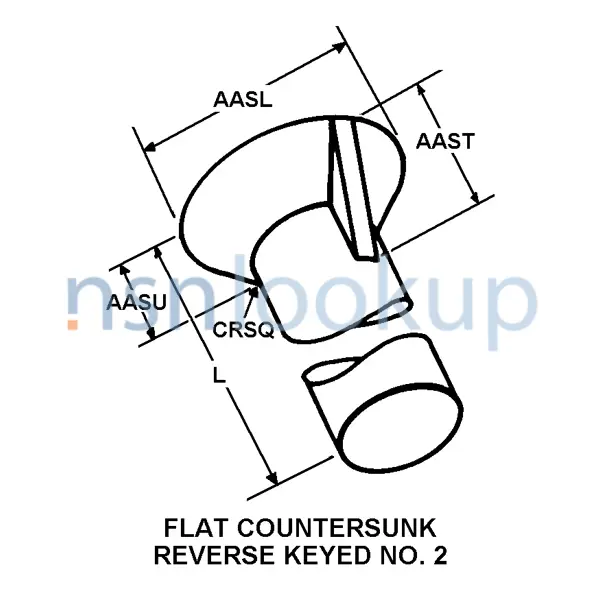

- Head Style [AASK]
- Flat Countersunk Reverse Keyed No. 2
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 1.125 Inches
- Key Length [AAST]
- 0.562 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.500 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 7
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5306-00-459-5025
Management Data 5306-00-459-5025
Similar Supply Items to 5306-00-459-5025
Freight Information 5306-00-459-5025
5306-00-459-5025 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-459-5025 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-459-5025 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-459-5025 is not classified as a special type of cargo when transported by water. 5306-00-459-5025 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
