5306-00-426-2939

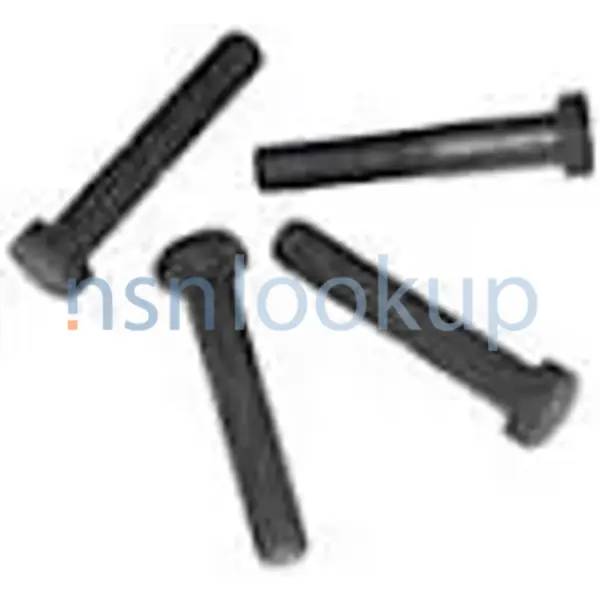

Machine Bolt
5306004262939 004262939 MIL-DTL-1222 0S1748 M1222RX6F232GHNN MIL-S-1222 0046419 0046419-8 046419 S1748
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
July 2025
27
Marketplace 5306-00-426-2939
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-426-2939 5+ Documents (More...)
EA NS Request Quotation MIL-DTL-1222 BOLT,MACHINE 210 EA NS Request Quotation MIL-S-1222 BOLT,MACHINE
/QQ-N-286 MIL-S-1222 An externally threaded fastener designed MIL-DTL-1222 BOLT,MACHINE 210 EA NS
MIL-DTL-1222 BOLT,MACHINE 210 EA NS Request Quotation MIL-S-1222 BOLT,MACHINE 1722 EA NS Request Quotation
-1222G MIL-S-1222 /QQ-N-286 001.000-08UNC-2B MIL-S-1222 https//www.nsnlookup.com /fsg-53/fsc-5306/us
MIL-DTL-1222 BOLT,MACHINE 210 EA NS Request Quotation MIL-S-1222 BOLT,MACHINE 1722 EA NS Request Quotation
CONTINUOUS THREAD 210 EA NS Request Quotation MIL-S-1222 STUD,CONTINUOUS THREAD 1722 MIL-DTL MIL-DTL-
MIL-S-1222 BOLT,MACHINE 1722 EA NS Request Quotation MIL-DTL-1222 BOLT,MACHINE 210 EA NS Request Quotation
CONTINUOUS THREAD 210 EA NS Request Quotation MIL-S-1222 STUD,CONTINUOUS THREAD 1722 MIL-DTL MIL-DTL-
MIL-S-1222 BOLT,MACHINE 1722 EA NS Request Quotation MIL-DTL-1222 BOLT,MACHINE 210 EA NS Request Quotation
BOLT,MACHINE 210 EA NS Request Quotation MIL-S-1222 BOLT,MACHINE 1722 EA NS Request Quotation MIL-DTL
Restrictions 5306-00-426-2939
5306-00-426-2939 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-426-2939
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-426-2939
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCL
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Sep 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5306-00-426-2939
- Part Number
- Manufacturer
- Status
- M1222RX6F232GHNN
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-1222
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-S-1222
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0046419
- 89926 - New Holland Construction (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0046419-8
- 89926 - New Holland Construction (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 046419
- 89926 - New Holland Construction (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- S1748
- 11083 - Caterpillar Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0S1748
- 11083 - Caterpillar Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-426-2939
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.000 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.281 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Mil-S-1222,Gr 8 Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Yield Strength [CQHQ]
- 145000 Pounds Per Square Inch
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 8 Grade
- Width Between Flats [AATB]
- 0.562 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.938 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5306-00-426-2939
DLA Procurement Analysis 5306-00-426-2939
- Last Stock Position:
- 9593 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-426-2939
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5306-00-426-2939
Freight Information 5306-00-426-2939
5306-00-426-2939 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-426-2939 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-426-2939 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-426-2939 is not classified as a special type of cargo when transported by water. 5306-00-426-2939 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-426-2939
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-00-426-2939 2 Records
Contracting Technical Data File (CTDF) 5306-00-426-2939 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
