5306-00-426-2922

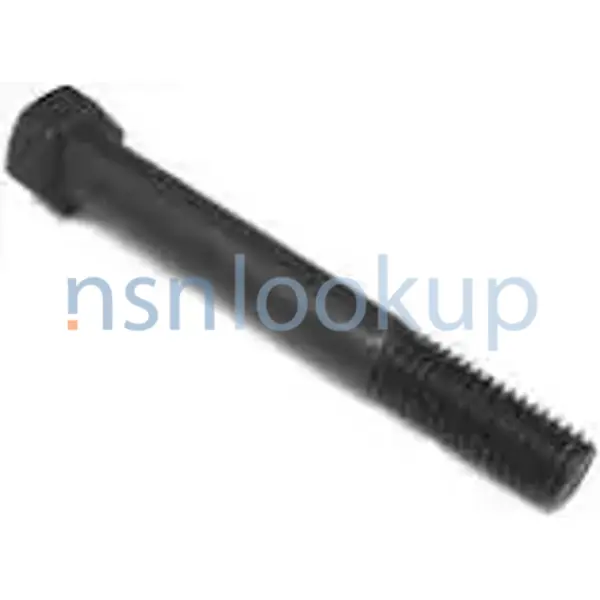

Machine Bolt
5306004262922 004262922 0768-1023 0S1573 17KP360 MIL-S-1222 S1573
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
July 2025
35
Marketplace 5306-00-426-2922
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-426-2922 5+ Documents (More...)
Every Day 5306-00-426-2922 RQST Updated Every Day 5306-00-426-2922 RQST NE Related Documents 5306-00
Every Day 5306-00-426-2922 RQST Updated Every Day 5306-00-426-2922 RQST NE Related Documents 5306-00
day Upgrade https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-426-2922 Machine Bolt 5306004262922
004262922 Account Upgrade 5306-00-426-2922Machine Bolt5306004262922 004262922 0768-1023 0S1573 17KP360
enable JavaScript in your web browser . 5820-99-777-3454Communication Bay O5820997773454 997773454 S1573
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-426-2922 Machine Bolt 5306004262922 004262922 Account
enable JavaScript in your web browser . 5820-99-777-3454Communication Bay O5820997773454 997773454 S1573
3453Communication Bay O5820997773453 997773453S1573 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-426-2922
day Upgrade your Account Upgrade 6730-01-429-9262Projection Screen6730014299262 0142992620081AJ HAR-S1573
day Upgrade your Account Upgrade 6730-01-429-9262Projection Screen6730014299262 0142992620081AJ HAR-S1573
Restrictions 5306-00-426-2922
5306-00-426-2922 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-426-2922
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-426-2922
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCL
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5306-00-426-2922
- Part Number
- Manufacturer
- Status
- 0S1573
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
- 17KP360
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 17KP360
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-1222
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- S1573
- 11083 - Caterpillar Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0768-1023
- 26455 - Tolomatic, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-426-2922
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 4.000 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.375 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 1050 Overall Or Steel Comp 1552 Overall Or Steel Comp 1053 Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.500 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 8 Grade
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Width Between Flats [AATB]
- 0.750 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.000 Inches Minimum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 13
Weapon Systems (WSDC) 5306-00-426-2922
DLA Procurement Analysis 5306-00-426-2922
- Last Stock Position:
- 338 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-426-2922
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5306-00-426-2922
Freight Information 5306-00-426-2922
5306-00-426-2922 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-426-2922 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-426-2922 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-426-2922 is not classified as a special type of cargo when transported by water. 5306-00-426-2922 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-426-2922
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-00-426-2922 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E418V6200
- 25 Apr 2018
- Subscribe
- 250
- Subscribe
- Subscribe
- Subscribe
- SPM7LX15D0001774Q
- 10 Aug 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE5E415V9772
- 11 Aug 2015
- Subscribe
- 291
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D9010484R
- 28 Feb 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM5E413M1184
- 11 Jan 2013
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5306-00-426-2922 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
