5306-00-338-0411
Internally Relieved Body Bolt
5306003380411 003380411 1292040-101 1283393-101
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
May 2023
3
Marketplace 5306-00-338-0411
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-338-0411 1+ Documents (More...)
(Identification) 1/2 NSN 5306-00-338-0411 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5306-00-338-0411 RQST NE Updated Every Day 5306-00-338-0411 RQST
Restrictions 5306-00-338-0411
5306-00-338-0411 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-338-0411
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-338-0411
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
Approved Sources 5306-00-338-0411
- Part Number
- Manufacturer
- Status
- 1292040-101
- Manufacturer
- 98897 - Lockheed Martin Corp (Active)
- Primary Buy
- Primary Buy
- 1283393-101
- 98897 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5306-00-338-0411
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 3.975 Inches Nominal First Hole
- Concentric Hole Depth [AAWX]
- 0.700 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.338 Inches Minimum And 0.345 Inches Maximum
- Criticality Code Justification [CRTL]
- Aavh
- Fastener Length [AASB]
- 4.100 Inches Nominal
- Head Height [AASU]
- 0.320 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp Xm-13 Overall
- Nominal Thread Diameter [AHYM]
- 0.625 Inches
- Nominal Thread Size [CQJX]
- 0.375 Inches Counterbore
- Internal Thread Direction [CGMJ]
- Right-Hand Counterbore
- Internal Thread Class [CWWR]
- 3B Counterbore
- Internal Thread Length [ABXT]
- 0.450 Inches Nominal Counterbore
- Shank Unthreaded Hole Diameter [AAWB]
- 0.143 Inches Minimum First Hole And 0.149 Inches Maximum First Hole
- Shoulder Diameter [AAVH]
- 0.6395 Inches Minimum And 0.6400 Inches Maximum
- Shoulder Length [AAVK]
- 3.325 Inches Minimum And 3.355 Inches Maximum
- Width Between Flats [AATB]
- 0.928 Inches Minimum And 0.940 Inches Maximum

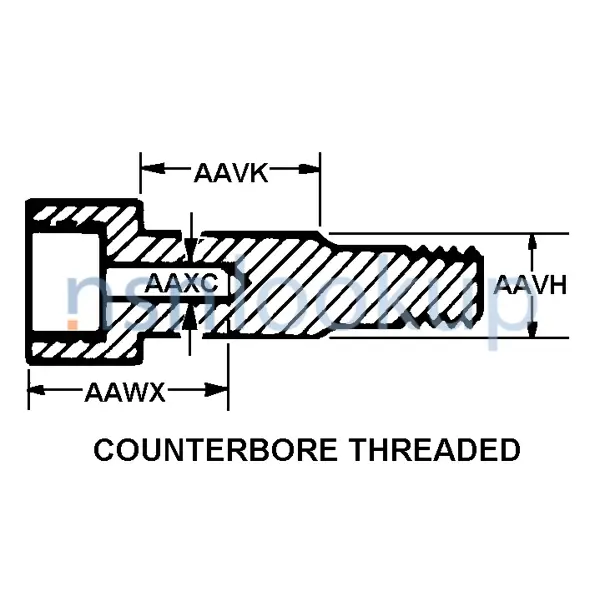

- Style Designator [STYL]
- Counterbore Threaded
- Surface Treatment Document And Classification [STDC]
- Lc+77-1061 36659 Mfr Ref Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Test Data Document [TEST]
- 36659-Lc+72-1076 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.575 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series Designator [THSD]
- Unf
- Thread Series [BZRR]
- Unjf Counterbore
- Threads Per Inch [AAEL]
- 24 Counterbore
