5306-00-316-5578
Internally Relieved Body Bolt
5306003165578 003165578 1285127-107 1285127-105
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
May 2023
7
Marketplace 5306-00-316-5578
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-316-5578 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5306-00-316-5578 RQST NE Updated Every Day 5306-00-316-5578 RQST
Updated Every Day 5306-00-316-5578 RQST NE Related Documents 5306-00-316-5578 1+ Documents ( More...
Restrictions 5306-00-316-5578
5306-00-316-5578 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-316-5578
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-316-5578
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
Approved Sources 5306-00-316-5578
- Part Number
- Manufacturer
- Status
- 1285127-107
- Manufacturer
- 98897 - Lockheed Martin Corp (Active)
- Primary Buy
- Primary Buy
- 1285127-105
- 98897 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1285127-107
- 76823 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1285127-107
- 0JRC1 - Northrop Grumman Technical Services, (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-316-5578
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 5.370 Inches Minimum First Hole And 5.380 Inches Maximum First Hole
- Concentric Hole Diameter [AAXC]
- 0.564 Inches Minimum And 0.566 Inches Maximum
- Counterbore Depth [AAWZ]
- 5.450 Inches Nominal
- Counterbore Diameter [AAWY]
- 0.9375 Inches Minimum And 0.9390 Inches Maximum
- Criticality Code Justification [CRTL]
- Aawy And Aavh
- Fastener Length [AASB]
- 5.790 Inches Nominal
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 1.250 Inches
- Material Document And Classification [MDCL]
- C-05-1190,Fscm 36659 Mfr Ref Single Material Response Overall
- Shank Unthreaded Hole Diameter [AAWB]
- 0.139 Inches Minimum First Hole And 0.145 Inches Maximum First Hole
- Shoulder Diameter [AAVH]
- 1.4990 Inches Minimum And 1.4998 Inches Maximum
- Shoulder Length [AAVK]
- 4.680 Inches Minimum And 4.690 Inches Maximum
- Special Features [FEAT]
- Color White

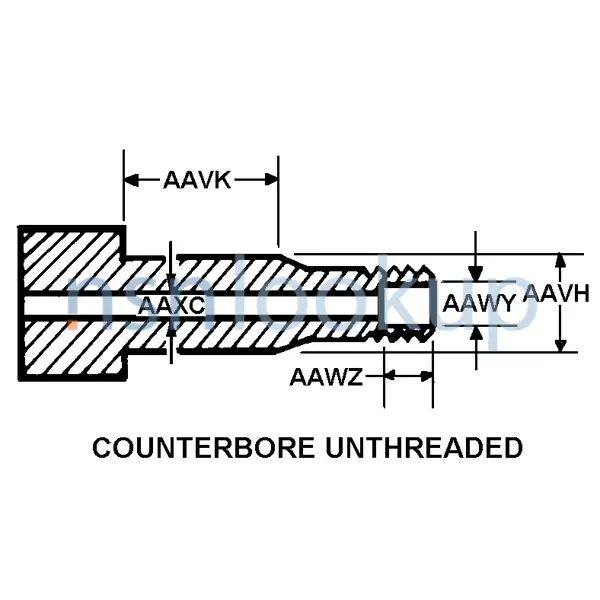

- Style Designator [STYL]
- Counterbore Unthreaded
- Surface Treatment Document And Classification [STDC]
- 595 No. 17875 Fed Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Paint Overall
- Test Data Document [TEST]
- 36659-Lc+72-1076 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.850 Inches Minimum And 0.860 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series Designator [THSD]
- Unj
DLA Procurement Analysis 5306-00-316-5578
Management Data 5306-00-316-5578
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5306-00-316-5578
Freight Information 5306-00-316-5578
5306-00-316-5578 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-316-5578 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-316-5578 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-316-5578 is not classified as a special type of cargo when transported by water. 5306-00-316-5578 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-316-5578
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5306-00-316-5578 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
