5306-00-225-9087

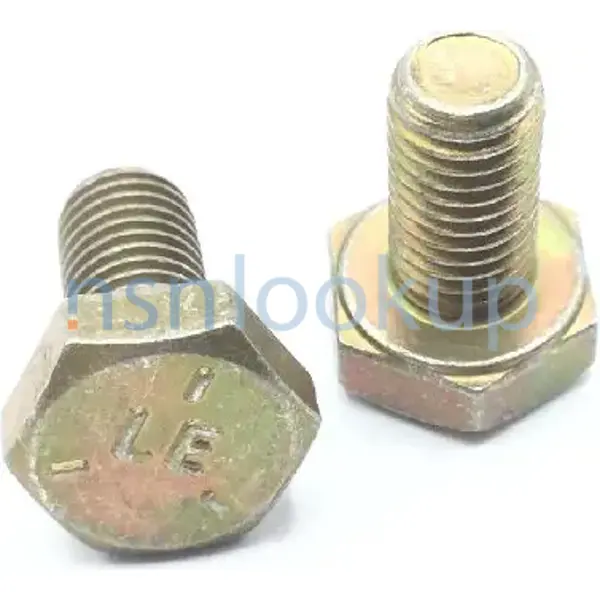

Machine Bolt
5306002259087 002259087 CP611+315+419 A50407-702 MS90726-32 SCR00050 13206E0449 32176 SCR58 0251561 5732-6 70008-32
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
January 2024
65
Marketplace 5306-00-225-9087
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-225-9087 5+ Documents (More...)
MS90726-32 BOLT,MACHINE RQST NS Request Quotation Subscribe to View Vendor Details... 5306-00-225-9087
MS90726-32 BOLT,MACHINE 476 HD NS Request Quotation Subscribe to View Vendor Details... 32176 BOLT,MACHINE
Machine Bolt 5306002259087 002259087 Bolt5306002259087 002259087CP611+315+419A50407-702MS90726
Updated Every Day 6210-01-414-0666 RQST Updated https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-225-9087
Machine Bolt 5306002259087 002259087 Bolt5306002259087 002259087 CP611+315+419 A50407-702 MS90726
www.nsnlookup.com /fsg-53/fsc-5340/nz 5340-98-105-4698 Double Angle Bracket 5340981054698981054698 07-32176
-1 -4698 is a Double Angle Bracket Approved https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-225-9087
Every Day 5865-14-408-4190 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-225-9087
Machine Bolt 5306002259087 002259087 225-5811 Part NumberManufacturerStatus3990/32176 https//www.nsnlookup.com
Restrictions 5306-00-225-9087
5306-00-225-9087 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-225-9087
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-225-9087
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5306-00-225-9087
- Part Number
- Manufacturer
- Status
- MS90726-32
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- SCR00050
- 60532 - Trane U.S. Inc. (Active)
- Primary Buy
- Primary Buy
- 13206E0449
- 97403 - Cecom Lr Center (Active)
- Primary Buy
- Primary Buy
- 32176
- 13841 - Tiffin Parts, L.L.C. (Active)
- Secondary Buy
- Secondary Buy
- SCR58
- 60532 - Trane U.S. Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0251561
- H0001 - Daf Trucks N.V. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5732-6
- 99832 - Scott Huber Essick A Co Of Figgie (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 70008-32
- 95097 - Little Giant Crane And Shovel Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A50407-702
- 41625 - Incom Intl Inc Morse Controls Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306002259087
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90726-32
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306002259087
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- CP611+315+419
- 88310 - Siemens-Allis Inc Medium (Active)
- Advisory Reference
- Advisory Reference
- A50407-702
- 62809 - Marine Acquisition (Us) Incorporated (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-225-9087
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.719 Inches Minimum And 0.750 Inches Maximum
- Features Provided [CBBL]
- Finished Head
- Hardness Rating [CQFM]
- 25.0 Rockwell C Minimum Overall And 34.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.195 Inches Minimum And 0.211 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Gr 5 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 120000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.312 Inches
- Width Between Flats [AATB]
- 0.489 Inches Minimum And 0.500 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.614 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series Designator [THSD]
- Unf
DLA Procurement Analysis 5306-00-225-9087
Management Data 5306-00-225-9087
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2007
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5306-00-050-1238
- Z
NATO Stock Numbers Related to 5306-00-225-9087
Freight Information 5306-00-225-9087
5306-00-225-9087 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-225-9087 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-225-9087 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-225-9087 is not classified as a special type of cargo when transported by water. 5306-00-225-9087 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-225-9087
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5306-00-225-9087 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
