5306-00-182-1873

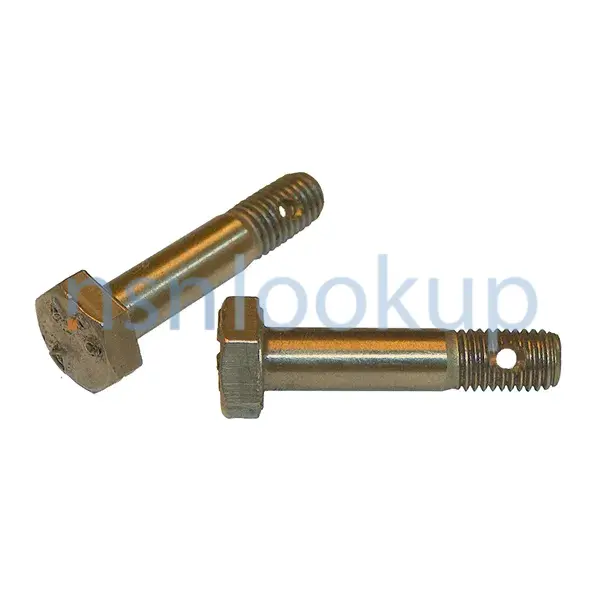

Close Tolerance Bolt
5306001821873 001821873 AN174-41A
An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE. View more Close Tolerance Bolt
May 2023
20
Marketplace 5306-00-182-1873
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-182-1873 3+ Documents (More...)
AN174-41A BOLT,CLOSE TOLERANCE 47 EA NS Request Quotation Updated Every Day 5306-00-182-1873 RQST NE
Updated Every Day 5306-00-182-1873 RQST Updated Every Day 5306-00-182-1873 RQST NE Related Documents
Close Tolerance Bolt 5306001821873 001821873 AssyUOMTechnical DocumentQuantative ExpressionDefense
Restrictions 5306-00-182-1873
5306-00-182-1873 is a Close Tolerance Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-182-1873
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-182-1873
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5306-00-182-1873
- Part Number
- Manufacturer
- Status
- AN174-41A
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5306-00-182-1873
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 4.156 Inches Nominal
- Grip Diameter [AAUR]
- 0.2487 Inches Minimum And 0.2492 Inches Maximum
- Grip Length [ANEE]
- 3.688 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.140 Inches Minimum And 0.172 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Mil-S-6049 Mil Spec 1St Material Response Overall Or Mil-S-6050 Mil Spec 2Nd Material Response Overall Or Mil-S-6098 Mil Spec 3Rd Material Response Overall Or Mil-S-5626 Mil Spec 4Th Material Response Overall Or Mil-S-6758 Mil Spec 5Th Material Response Overall Or Ams 6300 Assn Std 6Th Material Response Overall
- Material [MATT]
- Steel Comp 8740 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 4140 Overall Or Steel Comp 4130 Overall Or Steel Comp 4037 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.440 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Bearing Surface Of Head
- Surface Finish [CSYM]
- 63.0 Microinches Grip
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.469 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
