5306-00-180-2766

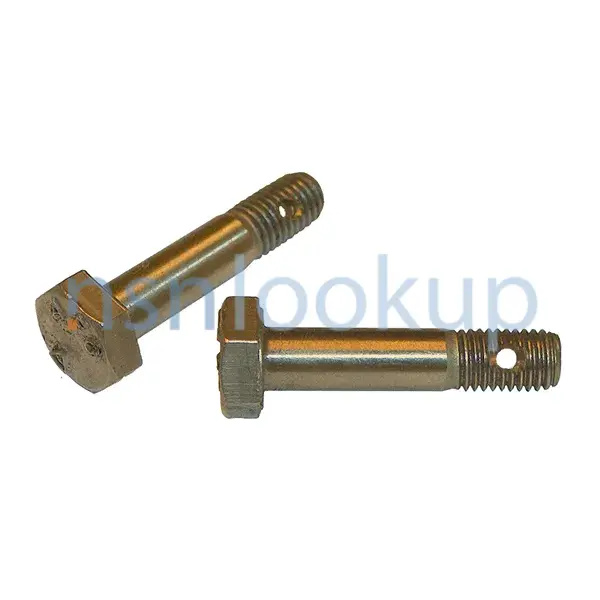

Close Tolerance Bolt
5306001802766 001802766 AN174-34A
An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE. View more Close Tolerance Bolt
May 2023
28
Marketplace 5306-00-180-2766
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-180-2766 3+ Documents (More...)
AN174-34A BOLT,CLOSE TOLERANCE 400 EA NS Request Quotation Subscribe to View Vendor Details...
AN174-34A BOLT,CLOSE TOLERANCE 75 EA NS Request Quotation Subscribe to View Vendor Details...
Close Tolerance Bolt 5306001802766 001802766 AssyUOMTechnical DocumentQuantative ExpressionDefense
AssyUOMTechnical DocumentQuantative ExpressionUS Marine Corps (DM)M0Reversal Of Phrase Code Z 5306-00-180-2766
Restrictions 5306-00-180-2766
5306-00-180-2766 is a Close Tolerance Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
