5306-00-180-1948

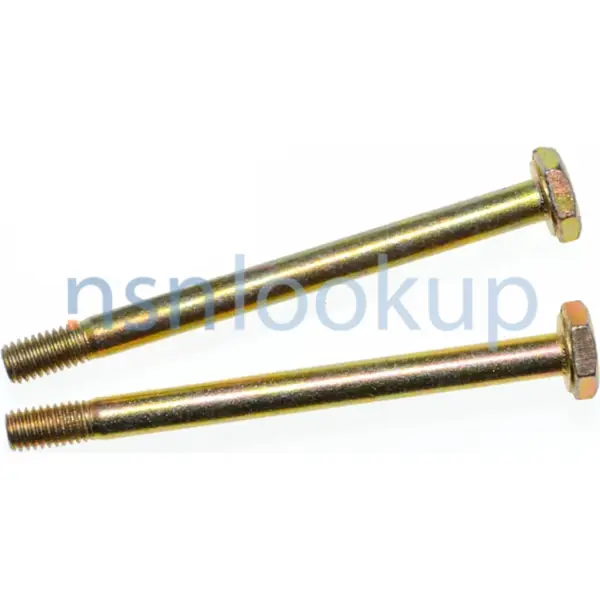

Machine Bolt
5306001801948 001801948 AN3-23A NASM3 THRU NASM20-AN3-23A 2010227 5306PL1494730
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
49
49
NATO Data Quality
Marketplace 5306-00-180-1948
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-180-1948 2+ Documents (More...)
AN3-23A NASM3 THRU NASM20-AN3-23A 2010227 5306PL1494730 An externally threaded fastener designed for
AN3-23A BOLT,MACHINE 114 HD NS Request Quotation 2010227 BOLT,MACHINE 1 HD NS Request Quotation Updated
Every Day 5306-00-180-1948 RQST NE Updated Every Day 5306-00-180-1948 RQST Updated Every Day 5306-00
AN3-23A BOLT,MACHINE 114 HD NS Request Quotation 2010227 BOLT,MACHINE 1 HD NS Request Quotation Updated
Every Day 5306-00-180-1948 RQST NE Updated Every Day 5306-00-180-1948 RQST Updated Every Day 5306-00
for $1 a day Upgrade your Account Upgrade 5970-00-902-5156Washer Insulator5970009025156 009025156 2010227
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 2010227
https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-902-5156 Washer Insulator 5970009025156009025156 2010227
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 2010227
https//www.nsnlookup.com /fsg-59/fsc-5970/us 5970-00-902-5156 Washer Insulator 5970009025156009025156 2010227
Restrictions 5306-00-180-1948
5306-00-180-1948 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-180-1948
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-180-1948
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCTCL
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Aug 2005
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Feb 2001
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 1995
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5306-00-180-1948
- Part Number
- Manufacturer
- Status
- NASM3 THRU NASM20-AN3-23A
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 2010227
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 2010227
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306PL1494730
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- AN3-23A
- 88044 - Aeronautical Standards Group (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-180-1948
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.406 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 2.000 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 4037 Overall Or Steel Comp 4130 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall Or Steel Comp 4140 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Material Document And Classification [MDCL]
- Mil-B-6812 Mil Spec All Material Responses Overall
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5306-00-180-1948
DLA Procurement Analysis 5306-00-180-1948
- Last Stock Position:
- 4100 In Stock
- DLA Administrative Lead Time:
