5306-00-180-1735
Close Tolerance Bolt
5306001801735 001801735 NAS54-5 AN174-5
An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE. View more Close Tolerance Bolt
May 2023
27
Marketplace 5306-00-180-1735
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-180-1735 5+ Documents (More...)

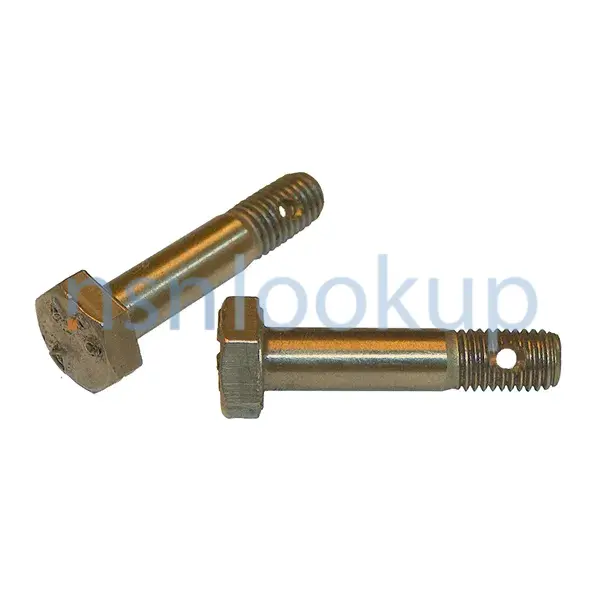

Photo 1/2 NSN 5306-00-180-1735 (Identification) 2/2 - - 1.
AN174-5 BOLT,CLOSE TOLERANCE 8 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5306-00-180-1735
5306-00-180-1735 is a Close Tolerance Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-180-1735
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-180-1735
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
- South Africa (ZD01)
- Effective Date:
- 1 May 2013
- France (ZF01)
- Effective Date:
- 1 May 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5306-00-180-1735
- Part Number
- Manufacturer
- Status
- AN174-5
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- NAS54-5
- 80205 - National Aerospace Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5306-00-180-1735
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 0.484 Inches Minimum First Hole And 0.516 Inches Maximum First Hole
- Fastener Length [AASB]
- 0.641 Inches Minimum And 0.688 Inches Maximum
- Grip Length [ANEE]
- 0.172 Inches Minimum And 0.203 Inches Maximum
- Grip Diameter [AAUR]
- 0.2487 Inches Minimum And 0.2492 Inches Maximum
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.140 Inches Minimum And 0.172 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp 8740 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 4130 Overall Or Steel Comp 4037 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Shank Unthreaded Hole Diameter [AAWB]
- 0.076 Inches Minimum First Hole And 0.086 Inches Maximum First Hole
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.440 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.438 Inches Minimum And 0.515 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
Similar Supply Items to 5306-00-180-1735
Freight Information 5306-00-180-1735
5306-00-180-1735 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-180-1735 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-180-1735 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-180-1735 is not classified as a special type of cargo when transported by water. 5306-00-180-1735 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
