5306-00-151-0785

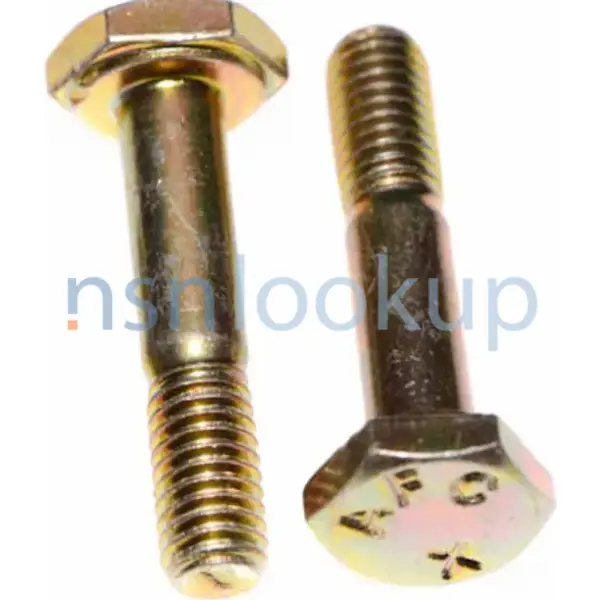

Machine Bolt
5306001510785 001510785 8801721 145-540-90107 AN3-7A 2010122 400 441 932.19.21.029 Z00.N5101301007 6026-6001-1 6026-7055-10 6026-7235-6 6026-3000-13 6026-3005-27 6026-8359-7 6026-8382-12 6026-8405-1 5306PL1020611
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
November 2023
NATO Update Count
78
78
NATO Data Quality
Marketplace 5306-00-151-0785
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-151-0785 5+ Documents (More...)
(IN.) 7A 1/2 29/32 5306-00-151-0785 7/16 29/32 5306-00-515-8064 10OA 5/8 1-1/32 5306-00-151-0784 9/16
/32 5306-00-151-1417 20A 1-5/8 2-1/32 5306-00-151-0776 1-9/16 1-1/32 5306-00-151-1416 Example: PN AN3-7A
/32 5306-00-151-1417 20A 1-5/8 2-1/32 5306-00-151-0776 1-9/16 1-1/32 5306-00-151-1416 Example: PN AN3-7A
LENGTH (IN.) 29132 l-1/32 l-5132 l-9132 l-13132 l-17/32 l-2 lJ32 l-25132 l-29132 2-lJ32 NSN 5306-00-151-0785
BOLT NSN GRIP BOLT NSN NO. 29/32 5306-00-151-1417 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0785
Machine Bolt 5306001510785 001510785,8801721 29/32 5306-00-151-0785 7/16 29/32 5306-00-515-8064
Machine Bolt 5306001510785 001510785,8801721 29/32 5306-00-151-0785 7/16 29/32 5306-00-515-8064
LENGTH (IN.) 29132 l-1/32 l-5132 l-9132 l-13132 l-17/32 l-2 lJ32 l-25132 l-29132 2-lJ32 NSN 5306-00-151-0785
5306-00-151-0776 1-9/16 1-1/32 5306-00-151-1416 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0785
Machine Bolt 5306001510785 001510785,8801721 32 5306-00-151-0784 9/16 /32 5306-00-151-1417 20A
Machine Bolt 5306001510785 001510785,8801721 32 5306-00-151-0784 9/16 /32 5306-00-151-1417 20A
Restrictions 5306-00-151-0785
5306-00-151-0785 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
