5306-00-151-0778

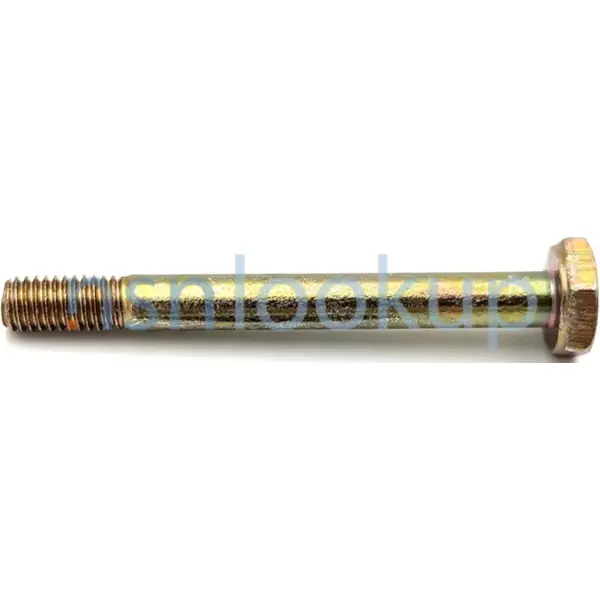

Machine Bolt
5306001510778 001510778 1510778 AN3-16A 2010172 400 446 932.19.21.036 6026-8359-1 5306PL0993906
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
52
52
NATO Data Quality
Marketplace 5306-00-151-0778
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
2010172 BOLT,MACHINE 100 HD NS
6026-8359-1 BOLT,MACHINE 100 HD NS
1510778 BOLT,MACHINE 100 HD NS
400446 BOLT,MACHINE 100 HD NS
AN3-16A BOLT,MACHINE 120 HD NS
Updated Every Day 5306-00-151-0778 RQST NE
Updated Every Day 5306-00-151-0778 RQST
Updated Every Day 5306-00-151-0778 RQST NE
Related Documents 5306-00-151-0778 3+ Documents (More...)
1510778 AN3-16A 2010172 400 446 932.19.21.036 6026-8359-1 5306PL0993906 An externally threaded fastener
AN3-16A BOLT,MACHINE 217 HD NS Request Quotation Subscribe to View Vendor Details... 400-446 BOLT,MACHINE
AN3-16A BOLT 100 HD NS Request Quotation 6026-8359-1 BOLT 100 HD NS Request Quotation AN3-16A BOLT 100
AN3-16A BOLT,MACHINE 217 HD NS Request Quotation Subscribe to View Vendor Details... 400-446 BOLT,MACHINE
AN3-16A BOLT 100 HD NS Request Quotation 6026-8359-1 BOLT 100 HD NS Request Quotation AN3-16A BOLT 100
AN3-16A BOLT,MACHINE 65 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-16A BOLT,MACHINE 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-16A BOLT,MACHINE 2 EA NS Request Quotation Subscribe to View Vendor Details... 2010172 BOLT,MACHINE
AN3-16A BOLT,MACHINE 3 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-16A BOLT,MACHINE 2 EA NS Request Quotation Subscribe to View Vendor Details... 2010172 BOLT,MACHINE
AN3-16A BOLT,MACHINE 217 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-16A BOLT,MACHINE 99 EA NS Request Quotation 400-446 BOLT,MACHINE 99 EA NS Request Quotation Subscribe
AN3-16A BOLT,MACHINE 65 EA NS Request Quotation Subscribe to View Vendor Details...
AN3-16A BOLT,MACHINE 99 EA NS Request Quotation 400-446 BOLT,MACHINE 99 EA NS Request Quotation Subscribe
AN3-16A BOLT,MACHINE 65 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5306-00-151-0778
5306-00-151-0778 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-151-0778
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-151-0778
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCTCL
- US Coast Guard (C918)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jan 2005
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5306-00-151-0778
- Part Number
- Manufacturer
- Status
- AN3-16A
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- 1510778
- 19204 - Army, United States Department Of (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2010172
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 400 446
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- 2010172
- FB459 - Embraer Aviation International (Active)
- Secondary Buy
- Secondary Buy
- 932.19.21.036
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- 6026-8359-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2010172
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306PL0993906
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5306-00-151-0778
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.781 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 1.375 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Mil-S-6049 Mil Spec 1St Material Response Overall Or Mil-S-6050 Mil Spec 2Nd Material Response Overall Or Mil-S-6098 Mil Spec 3Rd Material Response Overall Or Ams 6300 Assn Std 4Th Material Response Overall Or Mil-S-5626 Mil Spec 5Th Material Response Overall Or Mil-S-6758 Mil Spec 6Th Material Response Overall
- Material [MATT]
- Steel Comp 8740 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 4037 Overall Or Steel Comp 4140 Overall Or Steel Comp 4130 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5306-00-151-0778
DLA Procurement Analysis 5306-00-151-0778
- Last Stock Position:
- 47400 In Stock
