5306-00-151-0776

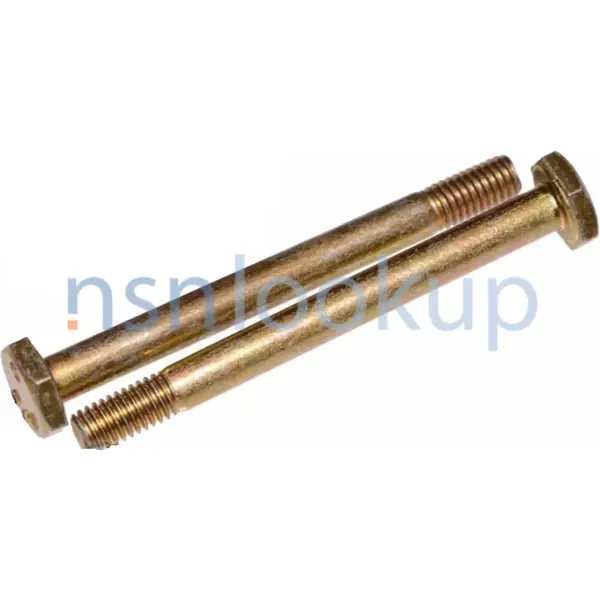

Machine Bolt
5306001510776 001510776 AN3-20A 2010194 932.19.21.038 400 451 457-5558 5306PL1494462
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
49
49
NATO Data Quality
Marketplace 5306-00-151-0776
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-151-0776 5+ Documents (More...)
AN3-20A 2010194 932.19.21.038 400 451 457-5558 5306PL1494462 An externally threaded fastener designed
/fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776001510776,AN3 -20A /fsg-53/fsc-5306/us
5306-00-151-0776 Machine Bolt 5306001510776001510776 ,AN3-20A Documents 8340 https//www.nsnlookup.com
/fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776001510776,AN3 -20A /fsg-53/fsc-5306/us
5306-00-151-0776 Machine Bolt 5306001510776001510776 ,AN3-20A Documents 8340 https//www.nsnlookup.com
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3
Related Documents 4820-99-457-5558 DEMIL https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776
Machine https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-457-5558 5340004575558 004575558 us 5306
Related Documents 4820-99-457-5558 DEMIL https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776
Machine https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-457-5558 5340004575558 004575558 us 5306
RQST Updated Every Day 8340-01-457-5558 RQST NE Related Documents 8340-01-457-5558 5+ Documents ( More
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3
-20A /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776001510776 ,AN3-20A Documents 8340
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3
-20A /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776001510776 ,AN3-20A Documents 8340
RQST Updated Every Day 5340-00-457-5558 RQST NE Related Documents 5340-00-457-5558 2+ Documents ( More
RQST Updated Every Day 5340-00-457-5558 RQST NE Restrictions 5340-00-457-5558 DEMIL: B | DEMILI : |
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3
RQST Updated Every Day 5340-00-457-5558 RQST NE Restrictions 5340-00-457-5558 DEMIL: B | DEMILI : |
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3
5925-14-457-5558 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5925/fr 5925-14-457-5558
RQST Updated Every Day 5925-14-457-5558 RQST NE Related Documents 5925-14-457-5558 2+ Documents ( More
fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3-20A Electronic Module 5963012170079012170079
RQST Updated Every Day 5925-14-457-5558 RQST NE Related Documents 5925-14-457-5558 2+ Documents ( More
fsc-5306/us 5306-00-151-0776 Machine Bolt 5306001510776 001510776,AN3-20A Electronic Module 5963012170079012170079
Restrictions 5306-00-151-0776
5306-00-151-0776 is a Machine Bolt that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-151-0776
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-151-0776
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCT
- US Coast Guard (C918)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Nov 2008
- Slovenia (WL01)
- Effective Date:
- 1 Mar 2006
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Czech Republic (WZ01)
- Effective Date:
- 1 Apr 2010
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Dec 1995
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5306-00-151-0776
- Part Number
- Manufacturer
- Status
- AN3-20A
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- 2010194
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 932.19.21.038
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- 2010194
- FB459 - Embraer Aviation International (Active)
- Secondary Buy
- Secondary Buy
- 400 451
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- 2010194
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 457-5558
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5306PL1494462
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5306-00-151-0776
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.031 Inches Nominal
- Features Provided [CBBL]
- Finished Head
- Grip Length [ANEE]
- 1.625 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Mil-S-6049 Mil Spec 1St Material Response Overall Or Mil-S-6050 Mil Spec 2Nd Material Response Overall Or Mil-S-6098 Mil Spec 3Rd Material Response Overall Or Ams 6300 Assn Std 4Th Material Response Overall Or Mil-S-5626 Mil Spec 5Th Material Response Overall Or Mil-S-6758 Mil Spec 6Th Material Response Overall
- Material [MATT]
- Steel Comp 8740 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 4037 Overall Or Steel Comp 4140 Overall Or Steel Comp 4130 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Width Between Flats [AATB]
- 0.365 Inches Minimum And 0.377 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5306-00-151-0776
