5306-00-145-7659

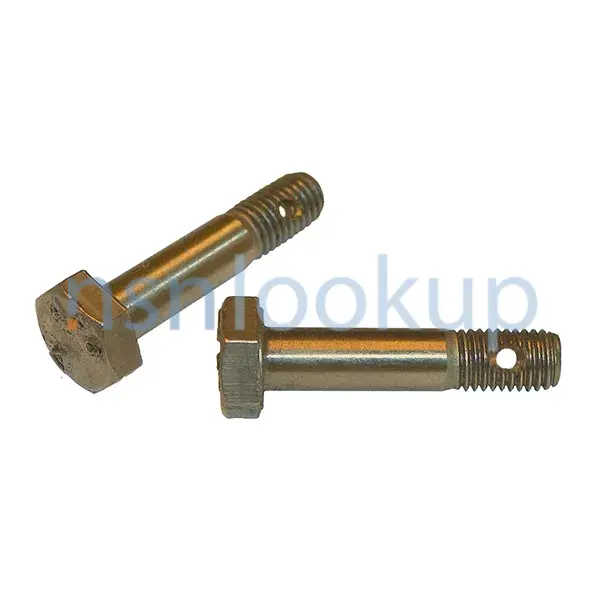

Close Tolerance Bolt
5306001457659 001457659 B6812 84T12 AN174-12 AN174H12 CIPRD-AN174H12 5306PL1016437
An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE. View more Close Tolerance Bolt
November 2023
49
Marketplace 5306-00-145-7659
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5306-00-145-7659 5+ Documents (More...)
AN174H12 BOLT,CLOSE TOLERANCE 6 EA NS Request Quotation AN174-12 BOLT,CLOSE TOLERANCE 43 EA NS Request
B6812 BOLT,CLOSE TOLERANCE 49 EA NS Request Quotation Updated Every Day 5306-00-145-7659 RQST NE Updated
AN174-12 BOLT,CLOSE TOLERANCE 1 EA NS Request Quotation Subscribe to View Vendor Details...
AN174-12 BOLT,CLOSE TOLERANCE 3 EA NS Request Quotation Subscribe to View Vendor Details...
/fsg-53/fsc-5306/us 5306-00-151-2841 Machine Bolt 5306001512841 001512841,B6812 B6812 BOLT,MACHINE 116
/fsg-53/fsc-5306/us 5306-00-182-1938 Machine Bolt 5306001821938 001821938,B6812 B6812 BOLT,MACHINE 12
Restrictions 5306-00-145-7659
5306-00-145-7659 is a Close Tolerance Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-145-7659
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-145-7659
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1997
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Slovenia (WL01)
- Effective Date:
- 1 Jan 2007
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Aug 2000
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Oct 2002
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 5306-00-145-7659
- Part Number
- Manufacturer
- Status
- AN174H12
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- B6812
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 84T12
- 80049 - Department Of The Air Force (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 06710 - Valley-Todeco, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 1RC86 - Howmet Global Fastening Systems Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 17943 - Federal Manufacturing Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 17446 - Huck International, Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 56878 - Sps Technologies, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN174H12
- 06725 - Sps Technologies, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- CIPRD-AN174H12
- 14153 - Defense Logistics Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN174H12
- 1CNU4 - John Hassall Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5306PL1016437
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- AN174-12
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5306-00-145-7659
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 1.124 Inches Nominal First Hole
- Fastener Length [AASB]
- 1.265 Inches Minimum And 1.312 Inches Maximum
- Grip Diameter [AAUR]
- 0.2487 Inches Minimum And 0.2492 Inches Maximum
- Grip Length [ANEE]
- 0.796 Inches Minimum And 0.828 Inches Maximum
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.140 Inches Minimum And 0.172 Inches Maximum
- Head Style [AASK]
- Hexagon
- Hole Configuration Style [CRHC]
- Hexagon Flats
- Hole Diameter [AAUB]
- 0.046 Inches Minimum And 0.056 Inches Maximum
- Hole Quantity [ASXK]
- 1
- Hole Type [BQDM]
- Drilled
- Material [MATT]
- Steel Comp 4140 Or Steel Comp 8740 Or Steel Comp 8630 Or Steel Comp 8735 Or Steel Comp 4130 Or Steel Comp 4037 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Shank Unthreaded Hole Diameter [AAWB]
- 0.076 Inches Minimum First Hole And 0.086 Inches Maximum First Hole
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.437 Inches Minimum And 0.516 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.440 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Bearing Surface Of Head
- Surface Finish [CSYM]
- 63.0 Microinches Grip
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Type 2 Class 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium And Chromate Overall
Weapon Systems (WSDC) 5306-00-145-7659
DLA Procurement Analysis 5306-00-145-7659
- Last Stock Position:
- 2483 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5306-00-145-7659
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Aft095req
- AFT095REQ
- R
- Department of the Navy (DN)
- N
- 7
- Substitute For 5306-00-180-1738
- AAA
- 7
- Department of the Navy (DN)
- N
- Dod I&S Family Master Nsn - - -
- ABA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BX
- Rotary Wing Aircraft
OH-58D Army Helicopter Improvement Program (AHIP)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5306-00-145-7659
Freight Information 5306-00-145-7659
5306-00-145-7659 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-145-7659 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-145-7659 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-145-7659 is not classified as a special type of cargo when transported by water. 5306-00-145-7659 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-145-7659
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5306-00-145-7659 2 Records
Contracting Technical Data File (CTDF) 5306-00-145-7659 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
