5306-00-104-9642
Machine Bolt
5306001049642 001049642 622261
An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt
August 2023
4
Marketplace 5306-00-104-9642
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-104-9642 5+ Documents (More...)
Day 5306-00-104-9642 RQST Updated Every Day 5306-00-104-9642 RQST NE Related Documents 5306-00-104-9642

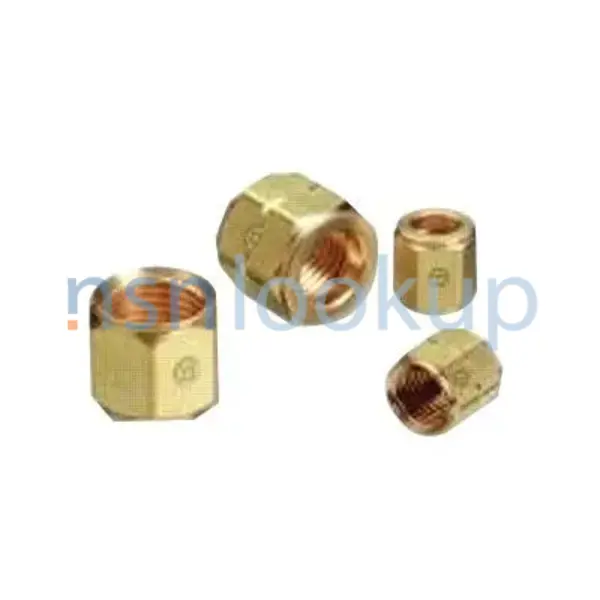

5306001049642 001049642,622261 Photo 1/4 5306-00-104-9642 Photo 2/4 5306-00-104-9642 Photo 3/4 NSN 5306
Machine Bolt 5306001049642 001049642,622261 9642 Machine Bolt 5306001049642 001049642,622261 https
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Army (DA)AZDiscontinued-Use 5306-00-104-9642
-3 622261 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY
https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-104-9642 Machine Bolt 5306001049642 001049642,622261
1710-01-668-6766 Linear Actuating Cylinder 1710016686766 1013Vented Cylinder1720012861013 012861013 622261
day Upgrade your Account Upgrade 3040-01-374-2537Linear Actuating Cylinder3040013742537 013742537 622261
Restrictions 5306-00-104-9642
5306-00-104-9642 is a Machine Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5306-00-104-9642
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-104-9642
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Supplementary Collaborators:
- HD
Approved Sources 5306-00-104-9642
- Part Number
- Manufacturer
- Status
- 622261
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
- 622261
- 80539 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- 622261
- 0EEG3 - Valco Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5306-00-104-9642
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.865 Inches Minimum And 0.885 Inches Maximum
- Features Provided [CBBL]
- Finished Head
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.105 Inches Minimum And 0.125 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Material Document And Classification [MDCL]
- Ams 5625 Assn Std Single Material Response Overall
- Width Between Flats [AATB]
- 0.430 Inches Minimum And 0.439 Inches Maximum
- Surface Finish [CSYM]
- 32.0 Microinches Sides Of Head
- Surface Finish [CSYM]
- 32.0 Microinches Top Of Head
- Surface Finish [CSYM]
- 63.0 Microinches Bearing Surface Of Head
- Surface Treatment Document And Classification [STDC]
- Ams 2400 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.865 Inches Minimum And 0.885 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5306-00-104-9642
Management Data 5306-00-104-9642
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5306-00-104-9642
Freight Information 5306-00-104-9642
5306-00-104-9642 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5306-00-104-9642 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5306-00-104-9642 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5306-00-104-9642 is not classified as a special type of cargo when transported by water. 5306-00-104-9642 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5306-00-104-9642
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5306-00-104-9642 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
