5306-00-068-0513

Machine Bolt

5306000680513 000680513 91248A540 100001 3070AS590-25 B1821AH025F075N B1821BH025F075N PMS90727001-06 13207E2948FN18 6893-2 AES01F250750AW9A91 5305000680513 62.41.004 1/4-UNF X 3/4,C/S ZINC PLATED 115A2 MS90726-6 MS90727-6 5305PL0924039

An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE. View more Machine Bolt

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
September 2025

NATO Update Count
96

NATO Data Quality

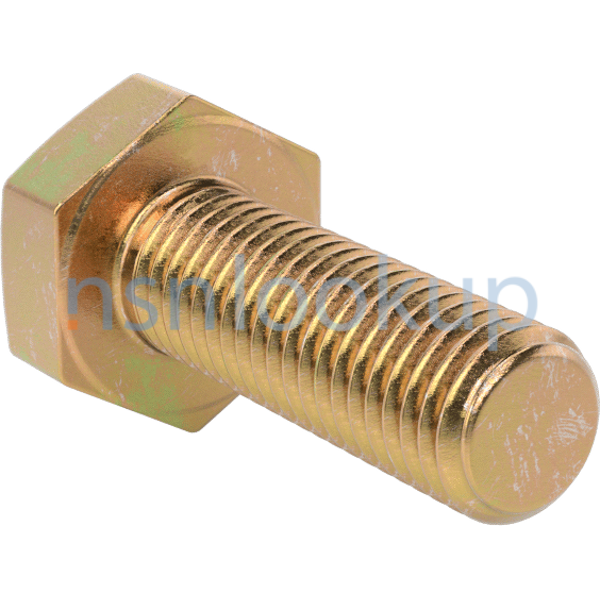

5306-00-068-0513 BOLT,MACHINE 5306000680513 000680513 1/3 — 5306-00-068-0513 Photo 1/3

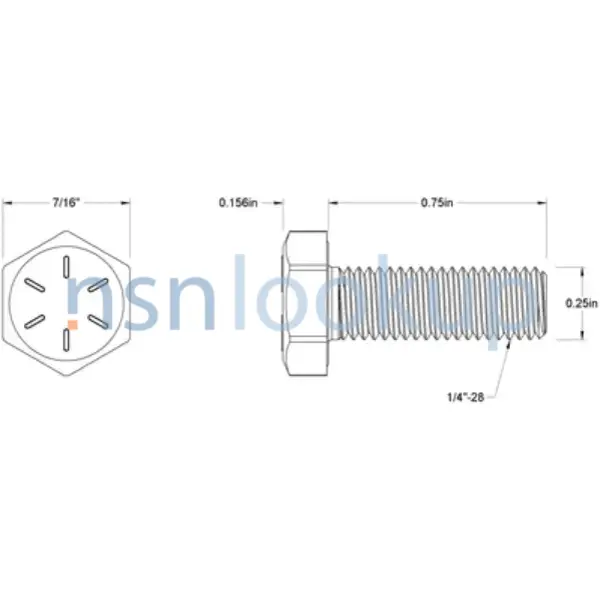

5306-00-068-0513 BOLT,MACHINE 5306000680513 000680513 2/3 — 5306-00-068-0513 Photo 2/3

AASK Style C1 for 5306-00-068-0513 3/3 — NSN 5306-00-068-0513 (Identification) 3/3

Product Information 5306-00-068-0513

B1821 Series Fine Thread - Undrilled Head - 1/4" 28-UNF-2A Fine Thread
