5306-00-020-3134
Internally Relieved Body Bolt
5306000203134 000203134 458298
An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE. View more Internally Relieved Body Bolt
August 2023
10
Marketplace 5306-00-020-3134
Request a Quotation from participating marketplace vendors
Related Documents 5306-00-020-3134 3+ Documents (More...)
Updated Every Day 5306-00-020-3134 RQST Updated Every Day 5306-00-020-3134 RQST NE Related Documents
5306-00-020-3134 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-00-020-3134
//www.nsnlookup.com /fsg-30/fsc-3020/fr 3020-14-320-4613 Spur Gear 3020143204613 143204613,458298 458298
//www.nsnlookup.com /fsg-30/fsc-3020/fr 3020-14-320-4613 Spur Gear 3020143204613 143204613,458298 458298
Internally Relieved Body Bolt 5306000203134 Upgrade your Account Upgrade 5306-00-020-3134Internally
Relieved Body Bolt5306000203134 000203134 458298 //www.nsnlookup.com /fsg-30/fsc-3020/fr 3020-14-320
Restrictions 5306-00-020-3134
5306-00-020-3134 is a Internally Relieved Body Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5306-00-020-3134
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5306-00-020-3134
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5306-00-020-3134
- Part Number
- Manufacturer
- Status
- 458298
- Manufacturer
- 19139 - Eastman Kodak Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5306-00-020-3134
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Concentric Hole Diameter [AAXC]
- 0.196 Inches Nominal
- Fastener Length [AASB]
- 0.937 Inches Nominal
- Head Height [AASU]
- 0.323 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 302 Overall Or Steel Comp 303 Overall Or Steel Comp 304 Overall Or Steel Comp 305 Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches Counterbore
- Nominal Thread Diameter [AHYM]
- 0.500 Inches
- Internal Thread Class [CWWR]
- 2B Counterbore
- Internal Thread Direction [CGMJ]
- Right-Hand Counterbore
- Internal Thread Length [ABXT]
- 0.500 Inches Nominal Counterbore
- Width Between Flats [AATB]
- 0.562 Inches Nominal

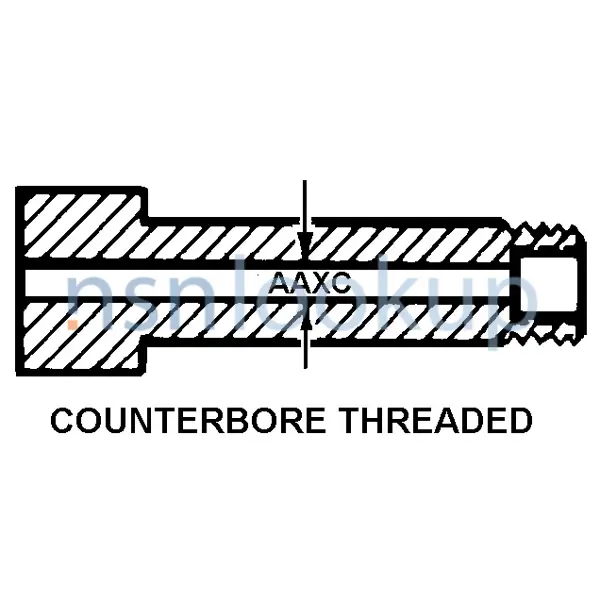

- Style Designator [STYL]
- Counterbore Threaded
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.812 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unf
- Thread Series [BZRR]
- Unc Counterbore
- Threads Per Inch [AAEL]
- 20 Counterbore
