5305-01-623-5599
Externally Relieved Body Screw
5305016235599 016235599 114084-RP-.688-SS-11 201124559-10 X201124559
An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING. View more Externally Relieved Body Screw
May 2023
1
Marketplace 5305-01-623-5599
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-623-5599 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-623-5599 RQST NE Updated Every Day 5305-01-623-5599 RQST
Updated Every Day 5305-01-623-5599 RQST NE Related Documents 5305-01-623-5599 4+ Documents ( More...
Externally Relieved Body Screw 5305016235599 (Identification) 1/2 NSN 5305-01-623-5599 (Identification
United States (US) 4. 5305-01-623-5599 Marketplace Restrictions Approved Sources Datasheet Management
Externally Relieved Body Screw 5305016235599 Upgrade your Account Upgrade 5305-01-623-5599Externally
Relieved Body Screw5305016235599 016235599 114084 www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-623-
Externally Relieved Body Screw 5305016235599 Upgrade your Account Upgrade 5305-01-623-5599Externally
Relieved Body Screw5305016235599 016235599 114084 www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-623-
Restrictions 5305-01-623-5599
5305-01-623-5599 is a Externally Relieved Body Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-623-5599
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-623-5599
- US Air Force (FGGI)
- Effective Date:
- 1 Nov 2013
Approved Sources 5305-01-623-5599
- Part Number
- Manufacturer
- Status
- 114084-RP-.688-SS-11
- Manufacturer
- 51506 - Accurate Screw Machine Corp (Active)
- Primary Buy
- Primary Buy
- 201124559-10
- 98752 - Warner Robins Air Logistics Center (Active)
- Secondary Buy
- Secondary Buy
- X201124559
- 98752 - Warner Robins Air Logistics Center (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5305-01-623-5599
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Iahhs
- Color [HUES]
- Black Overall
- Externally Relieved Body Diameter Quantity [CSNG]
- 1
- Fastener Length [AASB]
- 0.688 Inches Nominal
- Head Diameter [AASL]
- 0.260 Inches Maximum
- Head Height [AASU]
- 0.103 Inches Maximum
- Head Style [AASK]
- Round
- Material [MATT]
- Steel Comp 302 And Steel Comp 304 Overall
- Nominal Thread Diameter [AHYM]
- 0.138 Inches

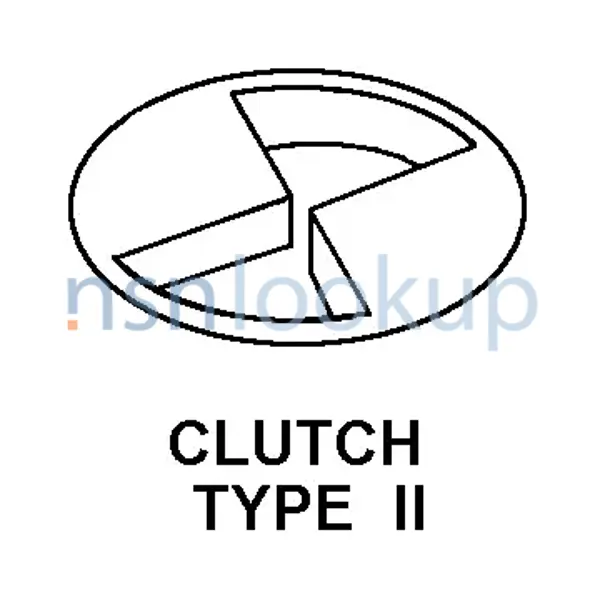

- Internal Drive Style [ABQZ]
- Clutch Type Ii
- Part Name Assigned By Controlling Agency [CXCY]
- Round Head Captive Screw
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
- Surface Treatment [SFTT]
- Oxide Overall
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.188 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5305-01-623-5599
DLA Procurement Analysis 5305-01-623-5599
Management Data 5305-01-623-5599
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5305-01-623-5599
Freight Information 5305-01-623-5599
5305-01-623-5599 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-623-5599 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-623-5599 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-623-5599 is not classified as a special type of cargo when transported by water. 5305-01-623-5599 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
