5305-01-623-4056

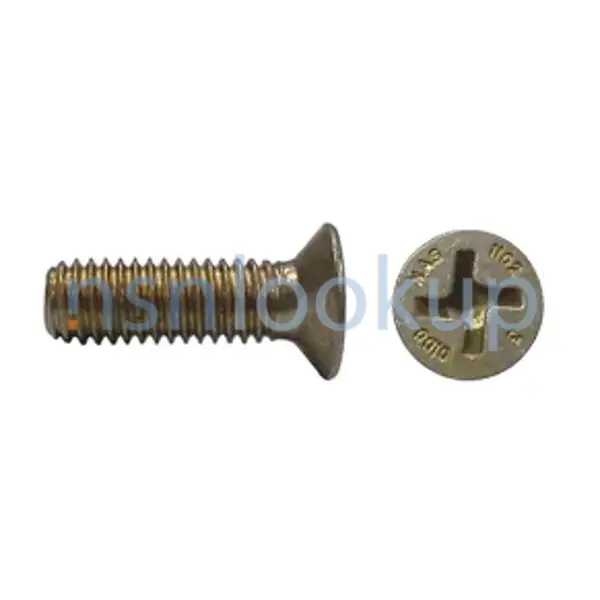

Machine Screw
5305016234056 016234056 NAS1102-3-14P
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
May 2023
4
Marketplace 5305-01-623-4056
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-623-4056 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-623-4056 RQST NE Updated Every Day 5305-01-623-4056 RQST
Updated Every Day 5305-01-623-4056 RQST NE Related Documents 5305-01-623-4056 5+ Documents ( More...
Machine Screw 5305016234056 016234056 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 https/
fsg-99/fsc-9999/uk 9999-99-404-2669 Machine Screw 9999994042669994042669 /fsg-53/fsc-5305/us 5305-01-623-4056
Machine Screw 5305016234056 016234056 Documents 5305-01-623-4056 5+ Documents ( More... https//
488-4378 5305-00-971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056
Machine Screw 5305016234056 016234056 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 https/
488-4378 5305-00-971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056
5305-01-607-2029 /fsc-9999/uk 9999-99-198-7704 Machine Screw 9999991987704991987704 136-7775 5305-01-623-4056
5305-01-607-2029 971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056
Restrictions 5305-01-623-4056
5305-01-623-4056 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-623-4056
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-623-4056
- US Air Force (FXGI)
- Effective Date:
- 1 Nov 2013
Approved Sources 5305-01-623-4056
- Part Number
- Manufacturer
- Status
- NAS1102-3-14P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-623-4056
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- End Item Identification [AGAV]
- B-1
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.844 Inches Minimum And 0.875 Inches Maximum
- Head Diameter [AASL]
- 0.322 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Torque Set
- Screw Material [CYAU]
- Steel Comp 4140 Or Steel Comp E4340 Or Steel Comp 6150 Or Steel Comp 8740
- Screw Surface Treatment [CYBA]
- Cadmium
- Part Name Assigned By Controlling Agency [CXCY]
- Screw Machine
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.733 Inches Minimum
