5305-01-607-2029

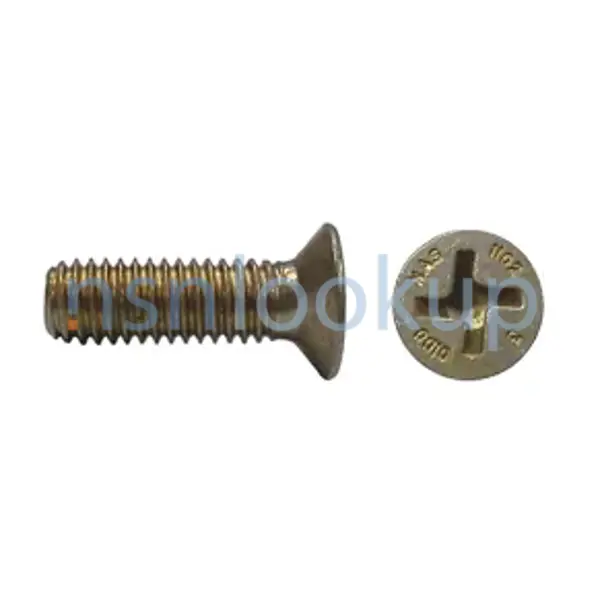

Machine Screw
5305016072029 016072029 NAS1102-3R16
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
May 2023
4
Marketplace 5305-01-607-2029
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-607-2029 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-607-2029 RQST NE Updated Every Day 5305-01-607-2029 RQST
Updated Every Day 5305-01-607-2029 RQST NE Related Documents 5305-01-607-2029 1+ Documents ( More...
971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 5305-01-607-2029
971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 5305-01-607-2029
971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 5305-01-607-2029
971-7403 5305-00-817-7178 5305-00-913-7822 5305-01-503-6297 5305-00-136-7775 5305-01-623-4056 5305-01-607-2029
Restrictions 5305-01-607-2029
5305-01-607-2029 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-607-2029
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-607-2029
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2012
- Supplementary Collaborators:
- KE
Approved Sources 5305-01-607-2029
- Part Number
- Manufacturer
- Status
- NAS1102-3R16
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-607-2029
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.9690 Inches Minimum And 1.0000 Inches Maximum
- Head Height [AASU]
- 0.010 Inches Minimum And 0.020 Inches Maximum
- Head Diameter [AASL]
- 0.322 Inches Minimum
- Head Style [AASK]
- Fillister Countersunk
- Nominal Thread Diameter [AHYM]
- 0.1900 Inches
- Internal Drive Style [ABQZ]
- Cross Recess Type 1
- Screw Material Document And Classification [CYAW]
- Mil-S-5626 Mil Spec Single Material Response
- Screw Surface Treatment Document And Classification [CYBE]
- Qq-P-416, Type Ii, Class 2 Fed Spec Single Treatment Response
- Screw Surface Treatment [CYBA]
- Cadmium
- Screw Material [CYAU]
- Steel Comp 4140
- Part Name Assigned By Controlling Agency [CXCY]
- Screw, Machine-Flat 100 Degree Head Full Thread, Offset Cruciform
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.904 Inches Nominal
Weapon Systems (WSDC) 5305-01-607-2029
DLA Procurement Analysis 5305-01-607-2029
Management Data 5305-01-607-2029
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-01-607-2029
Freight Information 5305-01-607-2029
5305-01-607-2029 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-607-2029 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-607-2029 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-607-2029 is not classified as a special type of cargo when transported by water. 5305-01-607-2029 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
