5305-01-595-7637
Machine Screw
5305015957637 015957637 A026G000 AF0779033 44832
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
November 2023
6
Marketplace 5305-01-595-7637
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-595-7637 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-595-7637 RQST NE Updated Every Day 5305-01-595-7637 RQST
Updated Every Day 5305-01-595-7637 RQST NE Related Documents 5305-01-595-7637 5+ Documents ( More...
in your web browser . 7644-39-001-4025Digital Geospatial Products7644390014025 390014025GDB-VMAP2-44832
in your web browser . 7644-39-001-4025Digital Geospatial Products7644390014025 390014025GDB-VMAP2-44832
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-596-7033 Assembled Washer Screw 5305015967033 A026G000
RQST NE Updated Every Day 5305-01-596-7033 RQST https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-595-7637
A3854/44832 An item which is rigid or semi-rigid, generally flat and smooth designed to be attached
https https A3854/44832 2209Compression Helical Spring5360014422209 https https//www.nsnlookup.com /
Machine Screw 5305015957637 015957637 270182874 44832 JavaScript in your web browser . 9905 https
6115015623700015623700,PP-3001,04-3001 HolesEnd Item Identification [AGAV]6115-01-562-3700 https Datasheet 5305-01-595-7637
Restrictions 5305-01-595-7637
5305-01-595-7637 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-595-7637
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-595-7637
- US Army (A919)
- Effective Date:
- 1 May 2011
- Supplementary Receivers:
- CL
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2014
Approved Sources 5305-01-595-7637
- Part Number
- Manufacturer
- Status
- A026G000
- Manufacturer
- 44940 - Cummins Power Generation Inc. (Active)
- Primary Buy
- Primary Buy
- AF0779033
- 1MMD1 - Anixter Inc (Active)
- Secondary Buy
- Secondary Buy
- A026G000
- 93907 - Textron Fastening Systems (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 44832
- 4M343 - Semblex Corporation (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-01-595-7637
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- End Item Identification [AGAV]
- 6115-01-562-3700 Power Plant, Electric, Trailer Mounted
- Extended Washer Thickness [AATD]
- 0.8 Millimeters Nominal
- Extended Washer Diameter [AATC]
- 12.5 Millimeters Nominal
- External Thread Tolerance Class [CQWR]
- 6H
- Fastener Length [AASB]
- 15.6 Millimeters Minimum And 16.4 Millimeters Maximum
- Head Diameter [AASL]
- 9.6 Millimeters Minimum And 10.4 Millimeters Maximum
- Head Height [AASU]
- 5.6 Millimeters Minimum And 6.4 Millimeters Maximum

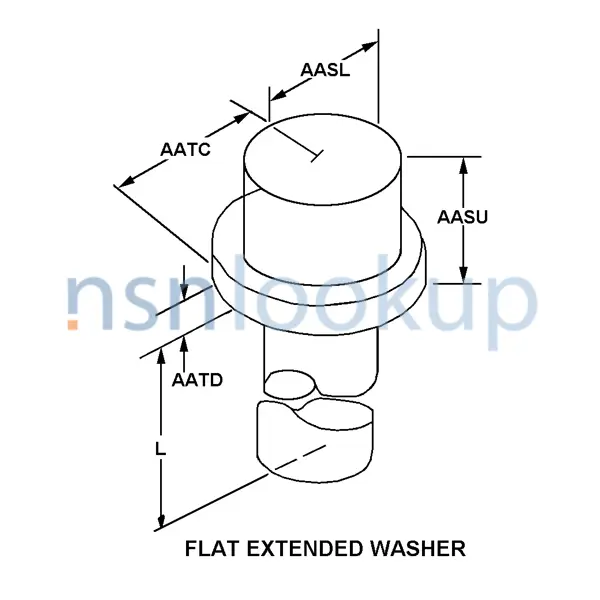

- Head Style [AASK]
- Flat Extended Washer
- Nominal Thread Diameter [AHYM]
- 6.0 Millimeters
- Internal Drive Style [ABQZ]
- Cross Recess Type 1
- Screw Material [CYAU]
- Steel Corrosion Resisting
- Part Name Assigned By Controlling Agency [CXCY]
- Screw, Flange Head
- Thread Series Designator [THSD]
- M
- Thread Pitch In Millimeters [CQQR]
- 1.0
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 15.6 Millimeters Minimum And 16.4 Millimeters Maximum
Weapon Systems (WSDC) 5305-01-595-7637
DLA Procurement Analysis 5305-01-595-7637
- Last Stock Position:
- 1279 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-595-7637
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Dec 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Aug 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Apr 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5305-01-595-7637
Freight Information 5305-01-595-7637
5305-01-595-7637 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-595-7637 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-595-7637 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-595-7637 is not classified as a special type of cargo when transported by water. 5305-01-595-7637 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
