5305-01-592-9135
Machine Screw
5305015929135 015929135 0256-SS-20 256-SS-20
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
May 2023
1
Marketplace 5305-01-592-9135
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-592-9135 2+ Documents (More...)
(Identification) 1/2 NSN 5305-01-592-9135 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5305-01-592-9135 RQST NE Updated Every Day 5305-01-592-9135 RQST
www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-708-1541 Spacing Threaded Standoff 5340017081541 4501-256-SS-20
Machine Screw 5305015929135 015929135 Documents 5305-01-592-9135 1+ Documents ( More... ) https
Restrictions 5305-01-592-9135
5305-01-592-9135 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-592-9135
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-592-9135
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2011
- Supplementary Collaborators:
- KE
Approved Sources 5305-01-592-9135
- Part Number
- Manufacturer
- Status
- 0256-SS-20
- Manufacturer
- 40337 - Raf Electronic Hardware Inc (Replaced)
- Original Design
- Original Design
- 256-SS-20
- 40337 - Raf Electronic Hardware Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-01-592-9135
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Fastener Length [AASB]
- 0.797 Inches Minimum And 0.827 Inches Maximum
- Head Diameter [AASL]
- 0.562 Inches Minimum And 0.577 Inches Maximum
- Head Height [AASU]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Head Style [AASK]

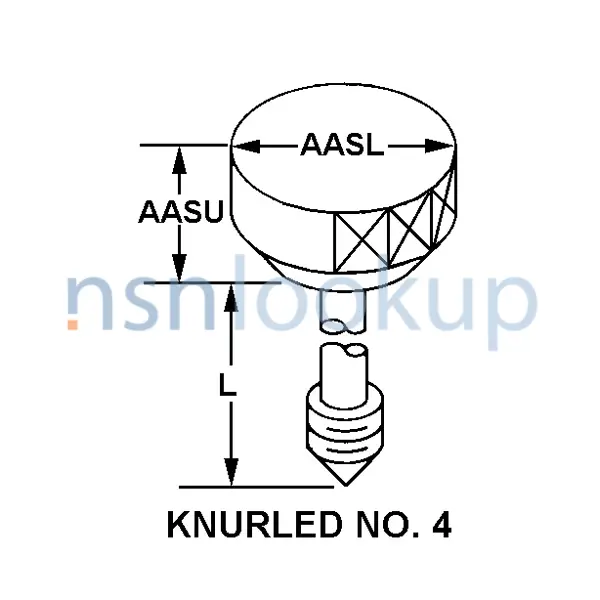

- Knurled No. 4
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Internal Drive Style [ABQZ]
- Slot
- Screw Material [CYAU]
- Steel
- Screw Surface Treatment [CYBA]
- Passivate
- Part Name Assigned By Controlling Agency [CXCY]
- Captive Panel Screw
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.360 Inches Minimum And 0.390 Inches Maximum
