5305-01-552-8337
Self-Drilling Screw
5305015528337 015528337 92364A247
A hardened, externally-threaded fastener with a self-drilling point. It drills, taps and fastens and may have a machine screw thread or a nonmachine screw thread. The threads usually extend from behind the pilot to the bearing surface of the head. View more Self-Drilling Screw
November 2023
1
Marketplace 5305-01-552-8337
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-552-8337 1+ Documents (More...)
(Identification) 1/3 NSN 5305-01-552-8337 (Identification) 2/3 NSN 5305-01-552-8337 (Identification
BUY NE FedMall Updated Every Day 92364A247 RQST NE Updated Every Day 5305-01-552-8337 RQST NE Updated
Restrictions 5305-01-552-8337
5305-01-552-8337 is a Self-Drilling Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-552-8337
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-552-8337
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2007
- Supplementary Collaborators:
- KE
Approved Sources 5305-01-552-8337
- Part Number
- Manufacturer
- Status
- 92364A247
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-552-8337
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Diameter [AHYM]
- 0.110 Inches
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Direction [AAJF]
- Right-Hand
- Fastener Length [AASB]
- 1.000 Inches Nominal
- Material [MATT]
- Steel Overall
- Head Style [AASK]
- Pan
- Head Diameter [AASL]
- 0.373 Inches Nominal
- Head Height [AASU]
- 0.133 Inches Nominal
- Internal Drive Style [ABQZ]
- Cross Recess Type Ii

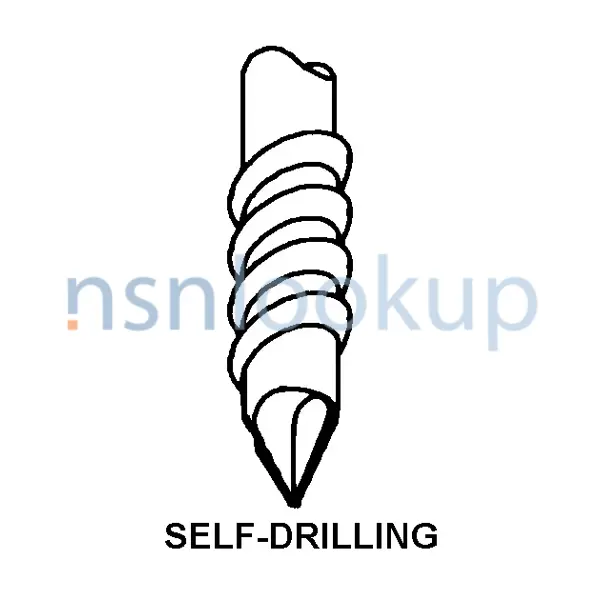

- Point Style [ABQJ]
- Self-Drilling
- Pilot Length [AAVM]
- 0.250 Inches Nominal
- Special Features [FEAT]
- Material Is Type 410 Stainless Steel
Weapon Systems (WSDC) 5305-01-552-8337
DLA Procurement Analysis 5305-01-552-8337
- Last Stock Position:
- 3700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-552-8337
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Department of the Navy (DN)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2019
- Department of the Navy (DN)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 100 Ea
- 00000000100EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 100 Ea
- 00000000100EA
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-01-552-8337
Freight Information 5305-01-552-8337
5305-01-552-8337 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-552-8337 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-552-8337 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-552-8337 is not classified as a special type of cargo when transported by water. 5305-01-552-8337 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5305-01-552-8337 2 Records
Contracting Technical Data File (CTDF) 5305-01-552-8337 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
