5305-01-498-1978
Thumbscrew
5305014981978 014981978 MHC526 MHC531 PC 7
An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified). View more Thumbscrew
November 2023
1
Marketplace 5305-01-498-1978
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-498-1978 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-498-1978 RQST NE Updated Every Day 5305-01-498-1978 RQST
Updated Every Day 5305-01-498-1978 RQST NE Related Documents 5305-01-498-1978 2+ Documents ( More...
Thumbscrew 5305014981978 014981978,MHC526 for $1 a day Upgrade your Account Upgrade 5305-01-498
-1978Thumbscrew5305014981978 014981978 MHC526 MHC531 RQST NE Updated Every Day 5305-01-498-1978 RQST
Restrictions 5305-01-498-1978
5305-01-498-1978 is a Thumbscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-498-1978
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-498-1978
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5305-01-498-1978
- Part Number
- Manufacturer
- Status
- MHC526
- Manufacturer
- 0VP52 - Fincantieri Marine Systems North (Active)
- Primary Buy
- Primary Buy
- MHC531 PC 7
- 0VP52 - Fincantieri Marine Systems North (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5305-01-498-1978
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Filter, 12 Inch Inline Enclosed Airsep
- Fastener Length [AASB]
- 0.690 Inches Minimum And 0.810 Inches Maximum
- Head Height [AASU]
- 0.850 Inches Nominal

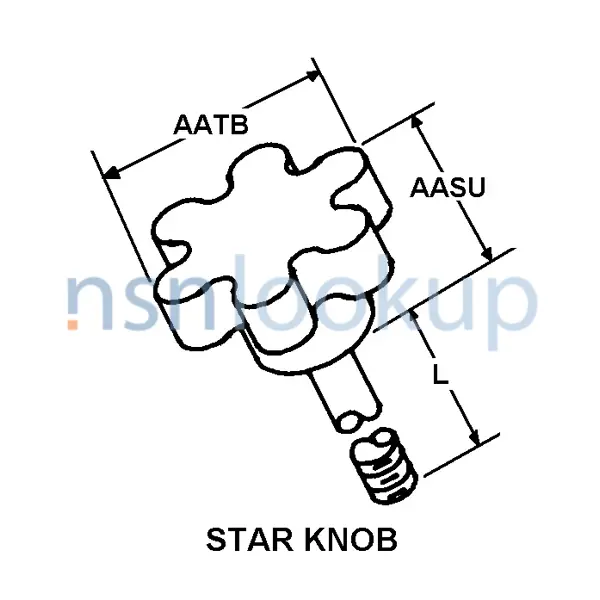

- Head Style [AASK]
- Star Knob
- Material [MATT]
- Plastic Head
- Material [MATT]
- Steel Fastener
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 20
- Width Between Flats [AATB]
- 1.375 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Nominal
Weapon Systems (WSDC) 5305-01-498-1978
DLA Procurement Analysis 5305-01-498-1978
- Last Stock Position:
- 52 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-498-1978
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-01-498-1978
Freight Information 5305-01-498-1978
5305-01-498-1978 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-01-498-1978 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-01-498-1978 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5305-01-498-1978 is not classified as a special type of cargo when transported by water. 5305-01-498-1978 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-498-1978
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-01-498-1978 4 Records
Contracting Technical Data File (CTDF) 5305-01-498-1978 October 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
