5305-01-475-1148
Close Tolerance Screw
5305014751148 014751148 VCL0009-7D28 PBBF1202-7-28D PBF1475-7D28 106706T-7-28D 124379-7D28 GB510FG7D28 GB510CE7-28D SC1779-7-28D HR204-7-28D
A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
May 2023
5
Marketplace 5305-01-475-1148
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-475-1148 5+ Documents (More...)
(Identification) 1/3 NSN 5305-01-475-1148 (Identification) 2/3 NSN 5305-01-475-1148 (Identification
GB510FG7D28 SCREW,CLOSE TOLERANCE 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 5305-01-
Close Tolerance Screw 5305014751148 014751148 Account Upgrade 5305-01-475-1148Close Tolerance Screw5305014751148
014751148 VCL0009-7D28 PBBF1202-7-28D PBF1475-7D28 106706T-7-28D 124379-7D28 GB510FG7D28 GB510CE7-28D
Close Tolerance Screw 5305014751148 014751148 Account Upgrade 5305-01-475-1148Close Tolerance Screw5305014751148
014751148 VCL0009-7D28 PBBF1202-7-28D PBF1475-7D28 106706T-7-28D 124379-7D28 GB510FG7D28 GB510CE7-28D
Close Tolerance Screw 5305014751148 014751148 Documents 5305-01-475-1148 1+ Documents ( More...
Navy (DN)NZDiscontinued-Use 5305-01-475-1148Defense Logistics Agency (DS)IZDiscontinued-Use 5305-01-475-1148
Close Tolerance Screw 5305014751148 014751148 Agency (DS)IZDiscontinued-Use 5305-01-475-1148 https
Restrictions 5305-01-475-1148
5305-01-475-1148 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-475-1148
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-475-1148
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- United States of America (ZZ)
Approved Sources 5305-01-475-1148
- Part Number
- Manufacturer
- Status
- GB510CE7-28D
- Manufacturer
- 26512 - Northrop Grumman Systems Corporation (Active)
- Original Design
- Original Design
- VCL0009-7D28
- 06710 - Valley-Todeco, Inc. (Active)
- Secondary Buy
- Secondary Buy
- PBBF1202-7-28D
- 27624 - Sps Technologies Llc (Active)
- Secondary Buy
- Secondary Buy
- PBF1475-7D28
- 27624 - Sps Technologies Llc (Active)
- Secondary Buy
- Secondary Buy
- 106706T-7-28D
- 80539 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- 124379-7D28
- 80539 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- SC1779-7-28D
- 06950 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HR204-7-28D
- 73197 - Hi-Shear Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GB510FG7D28
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5305-01-475-1148
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 1.172 Inches Minimum And 1.219 Inches Maximum
- Grip Diameter [AAUR]
- 0.4365 Inches Minimum And 0.4370 Inches Maximum
- Grip Length [ANEE]
- 0.584 Inches Minimum And 0.604 Inches Maximum
- Head Diameter [AASL]
- 0.8884 Inches Nominal
- Head Style [AASK]
- Flat Countersunk
- Hole Diameter [AAUB]
- 0.101 Inches Minimum And 0.111 Inches Maximum
- Hole Configuration Style [CRHC]

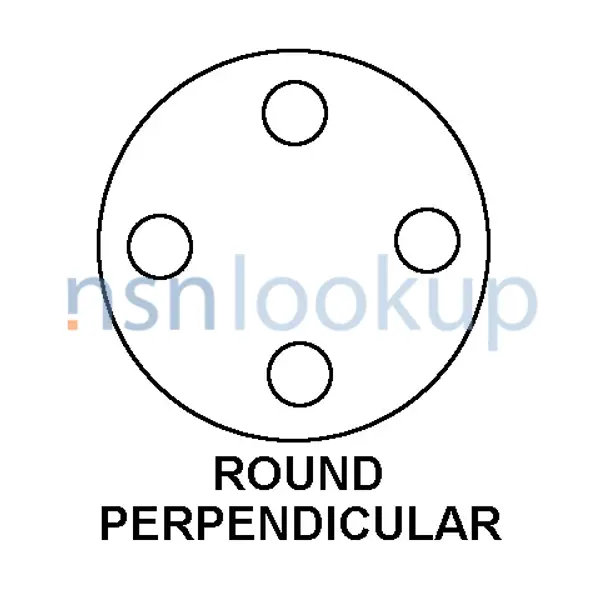

- Round Perpendicular
- Hole Quantity [ASXK]
- 1
- Hole Type [BQDM]
- Drilled
- Material [MATT]
- Nickel Alloy 718 Overall
- Nominal Thread Diameter [AHYM]
- 0.437 Inches
- Part Name Assigned By Controlling Agency [CXCY]
- Screw,Close Tolerance
- Internal Drive Style [ABQZ]
- Torque-Set Ribbed
- Material Document And Classification [MDCL]
- Ams 5662 Assn Std Single Material Response Overall
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unjf
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Head
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.594 Inches Nominal
