5305-01-412-5994

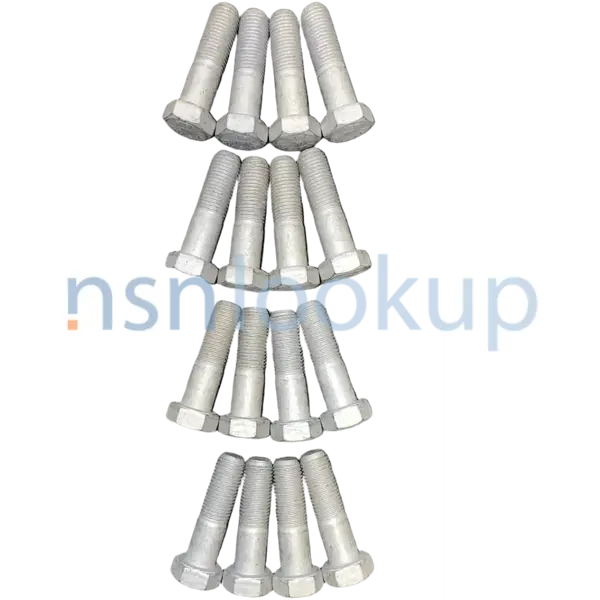

Hexagon Head Cap Screw
5305014125994 014125994 12460159 5305PL0656674 456720130310
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
November 2023
19
Marketplace 5305-01-412-5994
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-412-5994 1+ Documents (More...)
United States (US) 4. 5305-01-412-5994 Marketplace Restrictions Approved Sources Datasheet Management
, HEXAGON HEAD 100 EA NS Request Quotation 12460159 SCREW 24 EA NS Request Quotation 12460159 SCREW 323
Restrictions 5305-01-412-5994
5305-01-412-5994 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-412-5994
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-412-5994
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBS
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Hungary (WH01)
- Effective Date:
- 1 Sep 2013
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2004
- Slovenia (WL01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Spain (YB01)
- Effective Date:
- 1 Nov 2005
- Canada (ZC01)
- Effective Date:
- 1 Jul 2011
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2006
Approved Sources 5305-01-412-5994
- Part Number
- Manufacturer
- Status
- 12460159
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5305PL0656674
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 456720130310
- 0000V - Ncb Hungary (Honvedsegi Egyseges (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-01-412-5994
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.375 Inches Nominal
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.226 Inches Minimum And 0.243 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429 Gr8 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Special Features [FEAT]
- Altered Item Drawing P/N B1821bh038f138n
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 24
- Width Between Flats [AATB]
- 0.551 Inches Minimum And 0.562 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty2 Cl3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.625 Inches Minimum And 0.875 Inches Maximum
